- Size:customized size
- Material:Aluminum Alloy, Steel, carbon steel, stainless steel, as customer's requirments
- Surface Treatment:Painting, Powder Coated or as client require
- Manufacture Process:precision casting
- Lead time: around 45 days for castings
- Package:Multi-layer wooden box/pallet, with big plastic bag inside

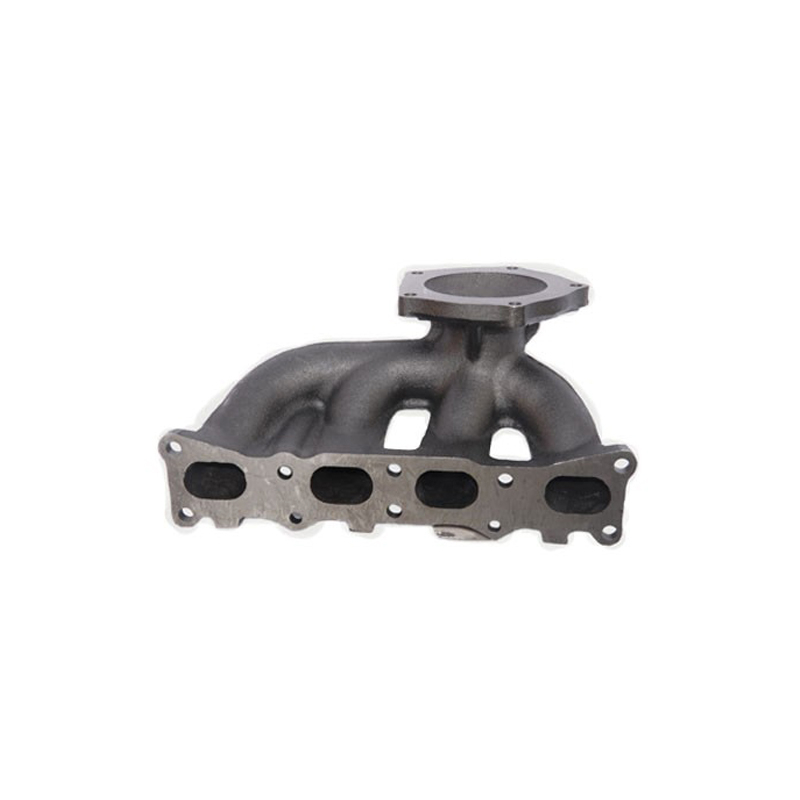

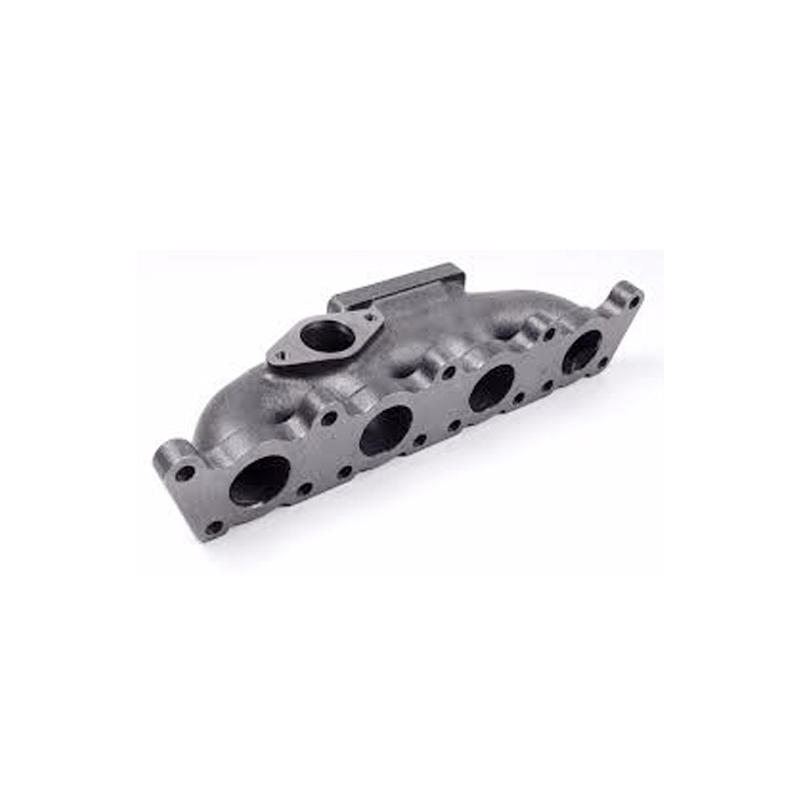

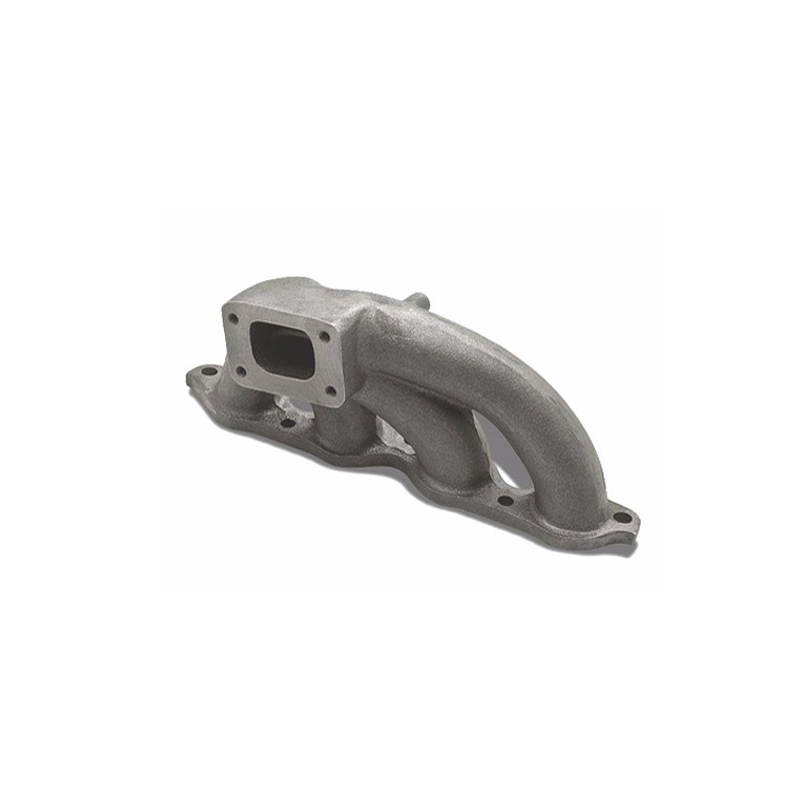

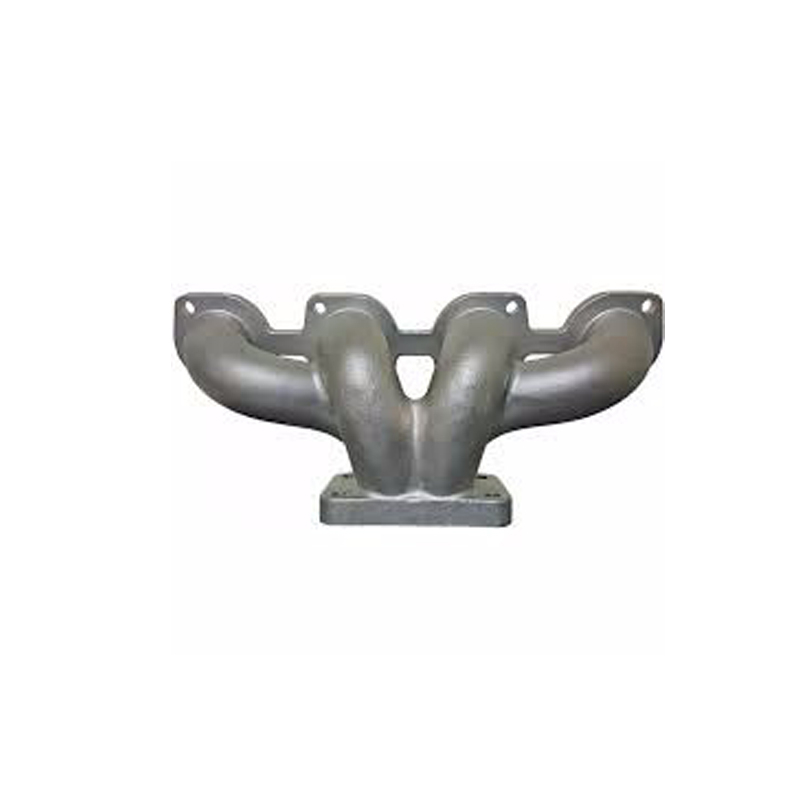

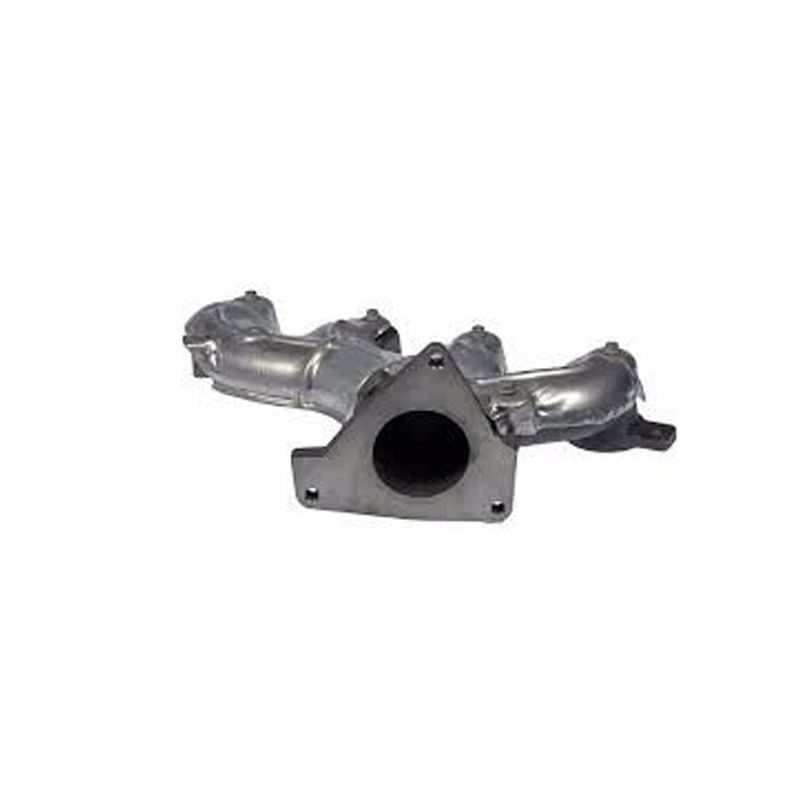

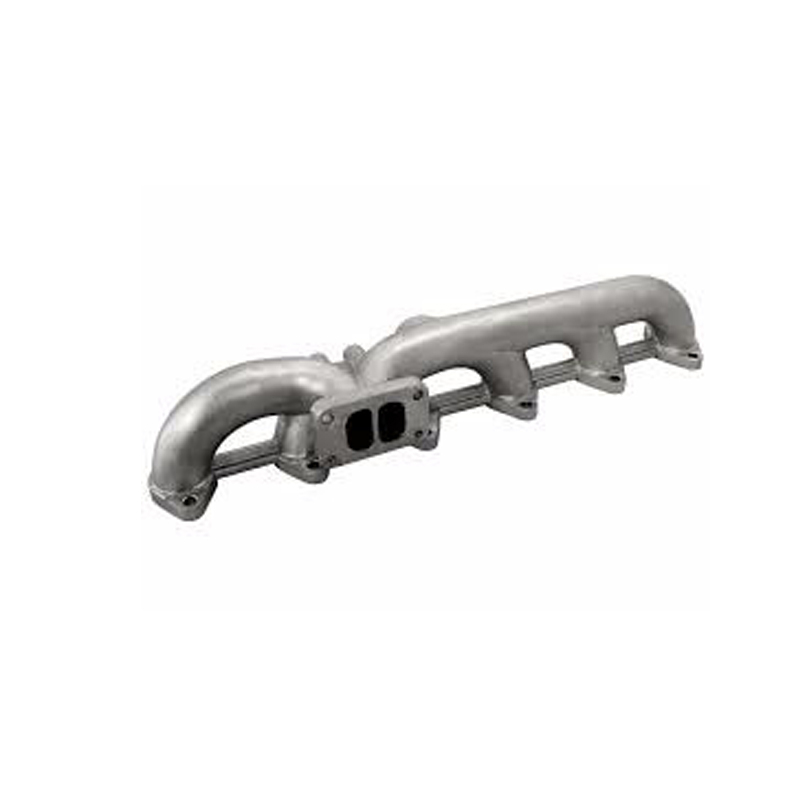

Customize Automotive Hydraulic Intake Inlet And Exhaust Manifold
Customize Automotive Hydraulic Intake Inlet And Exhaust Manifold
Item Name | Customize Automotive Hydraulic Intake Inlet And Exhaust Manifold |
General Products Application/Service Area | Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, such as stainless boat propeller, fan blade propeller, marine propeller, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc. |
Main blank Process for Steel Casting |
Investment casting (wax mold made by middle temperature wax) /Precision casting ; Lost Wax Casting (wax mold made by low temperature wax)/ Precision casting;
|
Blanks Tolerance -Casting Tolerance | CT7-8 for Lost wax Casting Process CT4-6 for Investment casting Process |
Applicable Material for casting stainless boat propeller |
Stainless Steel: CF8, CF8M, . G-X6CrNiMo1810, G-X7CrNiNb1189, SUS 304, 304L, 316, 316L. OR According to customer requirement |
Casting Blank Size /Dimensions | 2 mm-600mm / 0.08inch-24inch according to customer requirement |
Casting Blank Weight | Range from 0.01kg-85kg |
Applicable Machining Process |
CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
|
Machining Tolerance | From 0.005mm-0.01mm-0.1mm |
Machined Surface Quality | Ra 0.8-Ra3.2 according to customer requirement |
Applicable Heat Treatment |
Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching
|
Applicable Finish Surface Treatment | Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting, |
MOQ of mass production | For stainless 316l casting: 100pcs, or as clients required |
Lead Time | 50 days for stainless 316l casting |
Contact us now for technical proposals and quotation!
1. What do you do?
We are a professional manufacturer with over 15 years’ export experience for designing and producing vehicle machinery parts.
2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.
3. Can you make casting according to our drawing?
Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4. Can you make casting based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.
5. What’s your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.
We produce Intake Inlet And Exhaust Manifold per your drawing or sample, with cost reduction and feasible tech proposals. Inq
