General Products

 Application/Service Area

Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine,

transportation equipment, Valve and Pump system, Agriculture machine

metal Parts, engine bracket, truck chassis bracket, gear box , gear housing ,

gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe,

hydraulic valve, valve housing ,Fitting , flange, wheel, fly wheel,

oil pump housing, starter housing, coolant pump housing, transmission

shaft , transmission gear, sprocket, chains etc.

 Main blank Process for Aluminum Casting

Die Casting, Permanent Molding /Gravity Casting, Low Pressure Casting,

High Pressure Casting/Sand Casting, Extrusion Casting etc.

 Blanks Tolerance -Casting  Tolerance

CT4-6 for Permanent Molding, Die Casting, CT 9-11 for Sand Casting

 Applicable Material for casting

A356.0/ZL101,GAlSi7Mg  (3.2371.61)/AlSi7Mg/, A-S7G, Al Si Alloy,  Al Cu Alloy ZL201 Al Mg Alloy ZL301,ZL302,

Al Zn Alloy ZL401Zn Alloy Zamak 3, Zamak 5, Zamak 7, Zamak 2

Or according to customer requirements

 Casting Blank Size  /Dimensions

2 mm-1500mm / 0.08inch-60inch , or according to customer requirements

 Casting Blank Weight

Range from 0.01kg-50kg

 Applicable Machining Process

CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/

Broaching/Reaming /Grinding/Honing and  etc.

 Machining Tolerance

From 0.005mm-0.01mm-0.1mm

 Machined Surface Quality

Ra 0.8-Ra3.2 according to customer requirement

 Applicable Heat Treatment

T5~T6

 Applicable Finish Surface  Treatment

Shot/sand blast, polishing,  Primer Painting , Powder coating, ED- Coating,

Finish Painting, Anodize (White or Black Color)

 MOQ of mass production

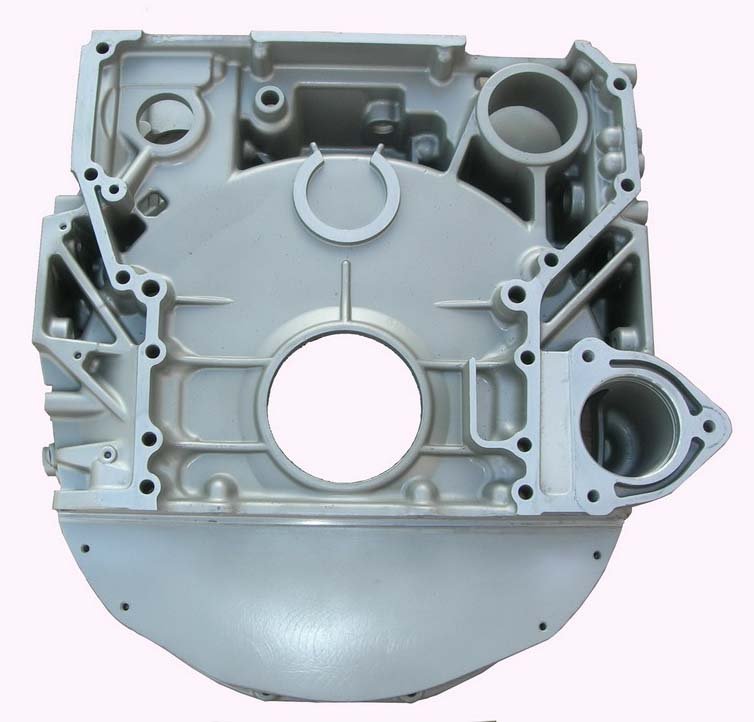

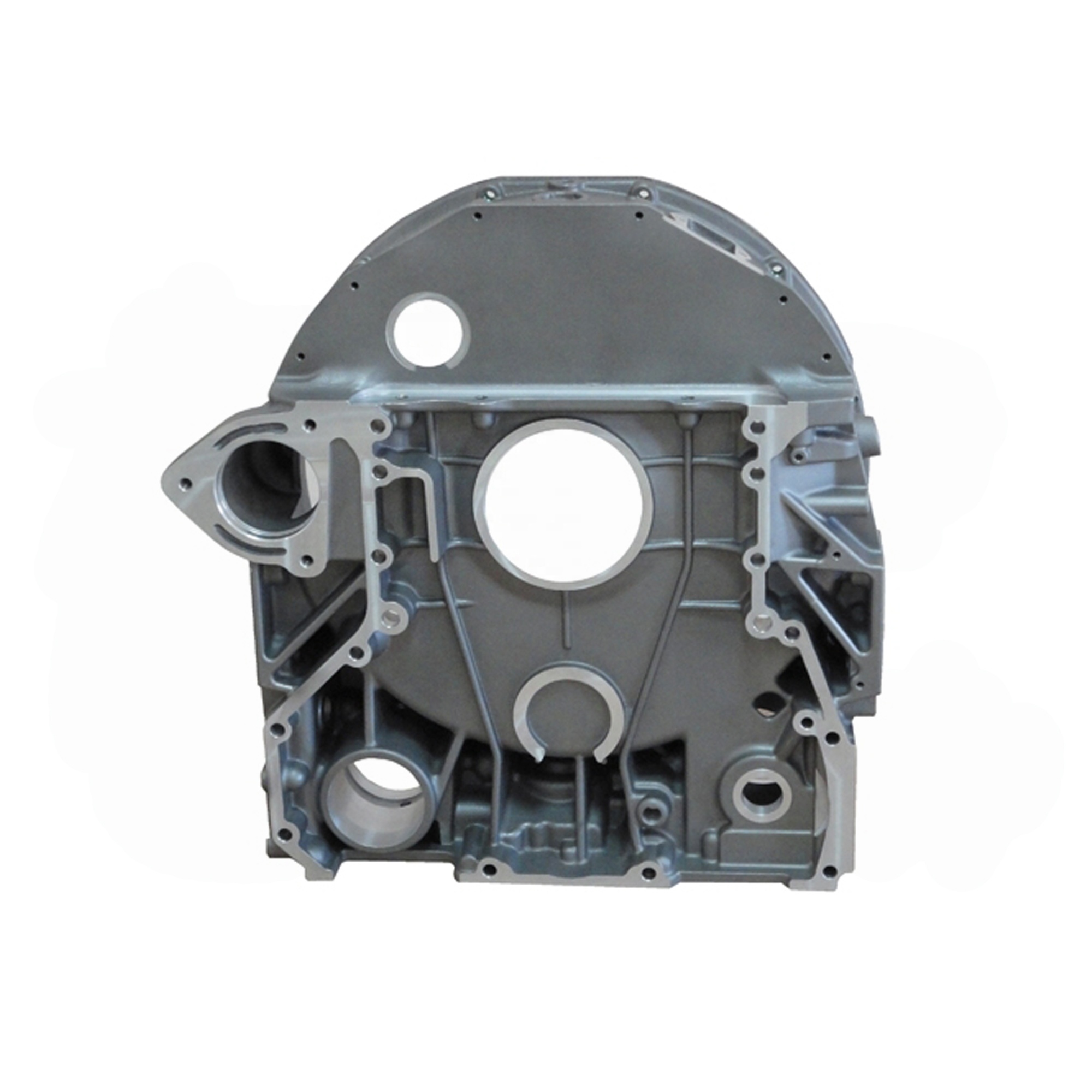

For cast flywheel housing casing: 100pcs

For Machining: 50pcs

 Lead Time

45days for cast flywheel housing casing
