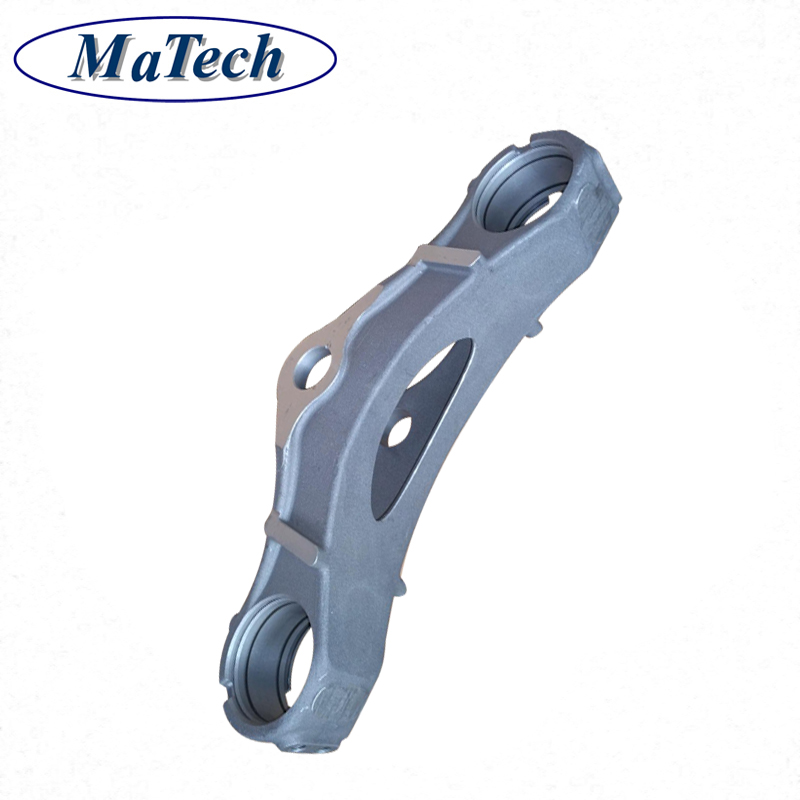

Custom Backyard Cold Metal Casting With Surface Powder Coated
- Products shown here are made to the requirements of specific customers and are illustrative of the types of manufacturing capabilities available within MATECH group of companies.
- MATECH policy is that none of these products will be sold to 3rd parties without written consent of the customers to whom the tooling, design and specifications belong.
Custom Backyard Cold Metal Casting With Surface Powder Coated
Description
Gravity casting
Gravity casting refers to the process of injecting molten metal into a mold under the action of the earth's gravity, also called casting. The generalized gravity casting includes sand casting, metal casting, investment casting, lost foam casting, mud casting,etc. The narrow gravity casting refers specifically to metal casting.
Low-pressure casting
Low-pressure casting is a casting method in which liquid alloy is pressed into the mold cavity from bottom to top under pressure,and solidified under pressure to obtain castings. The principle of pressure casting is to pass dry compressed air or inert gas into a sealed crucible, with the help of the pressure acting on the molten metal surface, the molten metal flows along the riser pipe from bottom to top to fill the mold smoothly through the runner , The filling pressure is generally 20-60kPa. When the casting is completely solidified, the gas pressure on the liquid surface is released, so that the non-solidified molten metal in the riser pipe and the runner flows into the crucible by its own weight, and then the mold is opened and the casting is taken out.
The production process of low pressure casting includes the following four basic procedures:
1) Metal smelting and preparation of molds or molds.
2) Preparations before pouring: including crucible sealing (fitting sealing cover), slag removal in riser pipe,
measuring liquid level, sealing test, mold matching, tightening mold or mold, etc.
measuring liquid level, sealing test, mold matching, tightening mold or mold, etc.
3) Pouring: including liquid lifting, filling,pressurization, solidification, pressure relief and cooling, etc.
4) Demoulding: including loose moulding and casting out.
Low pressure casting can use sand, metal, graphite, etc. The filling process is different from gravity casting such as metal
casting and sand casting, and it is also different from pressure casting with high pressure and high speed filling.
casting and sand casting, and it is also different from pressure casting with high pressure and high speed filling.
It has the following advantages:
1) Filling with pure liquid metal improves the purity of castings. Since molten slag generally floats on the
surface of the molten metal, low-pressure casting is filled with molten metal in the lower part of the crucible through the riser pipe, which completely avoids the possibility of molten slag entering the mold cavity.
surface of the molten metal, low-pressure casting is filled with molten metal in the lower part of the crucible through the riser pipe, which completely avoids the possibility of molten slag entering the mold cavity.
2) The molten metal fills smoothly, reducing or avoiding the tumbling, impact, and splashing of the molten metal during filling, thereby reducing the formation of oxide slag.
3) The casting has good moldability. The molten metal is filled under pressure, which can improve the fluidity of the
molten metal, which is beneficial to the formation of castings with clear contours and smooth surface, and is more beneficial for the molding of large thin-walled castings.
molten metal, which is beneficial to the formation of castings with clear contours and smooth surface, and is more beneficial for the molding of large thin-walled castings.
4) The casting crystallizes and solidifies under pressure, which can be fully fed and the casting structure is dense.
5) Improve the yield of molten metal. Under normal circumstances, there is no need for a riser, and the uncondensed metal in the riser pipe can be refluxed to the crucible for repeated use, which greatly improves the yield of molten metal. Generally up to 90%,
6) Convenient production and operation, good working conditions, high production efficiency, easy to realize mechanization and automation.

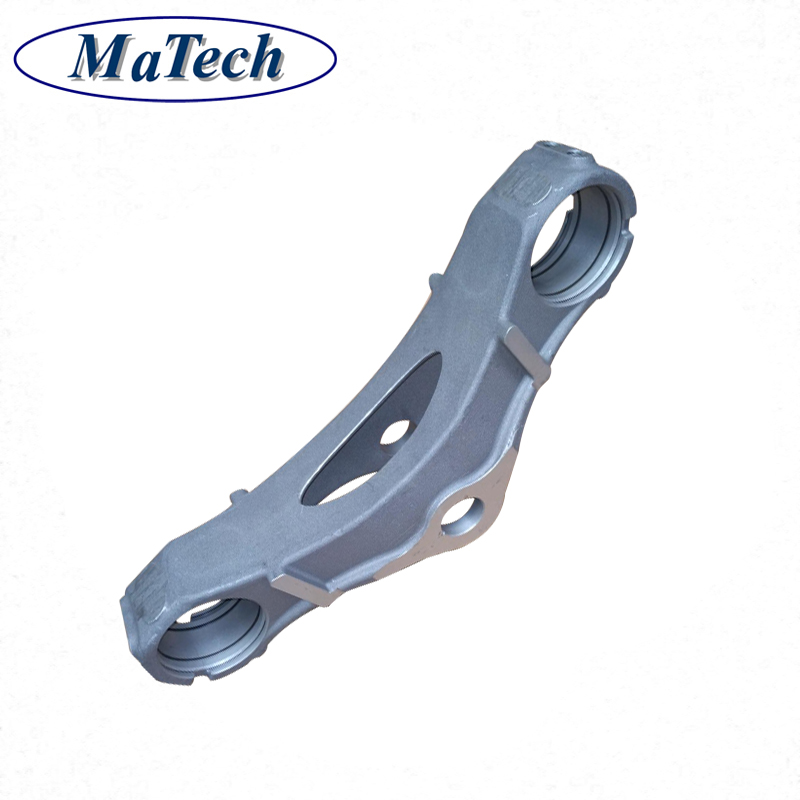

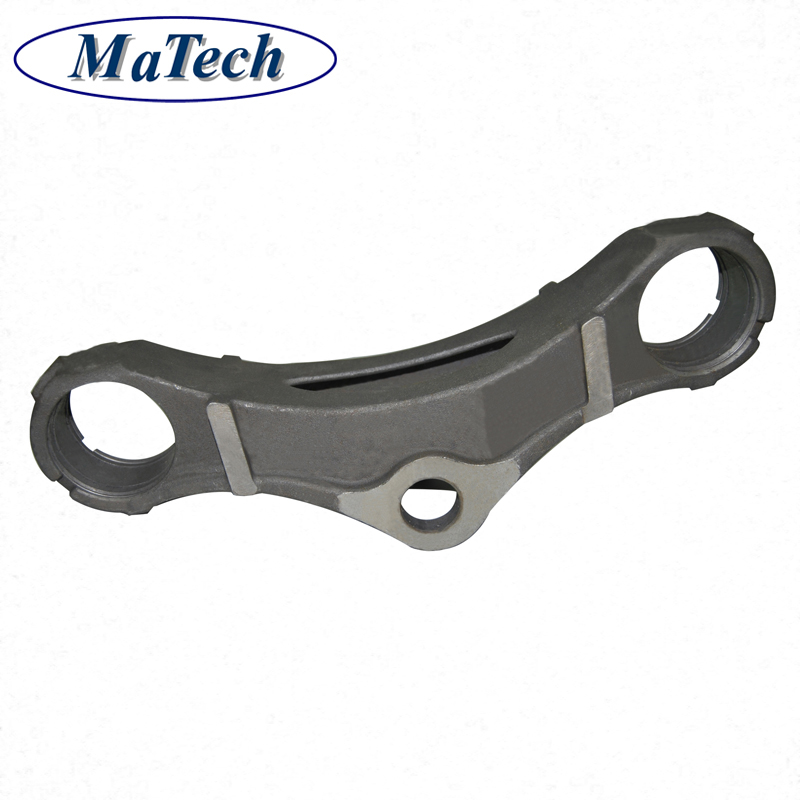

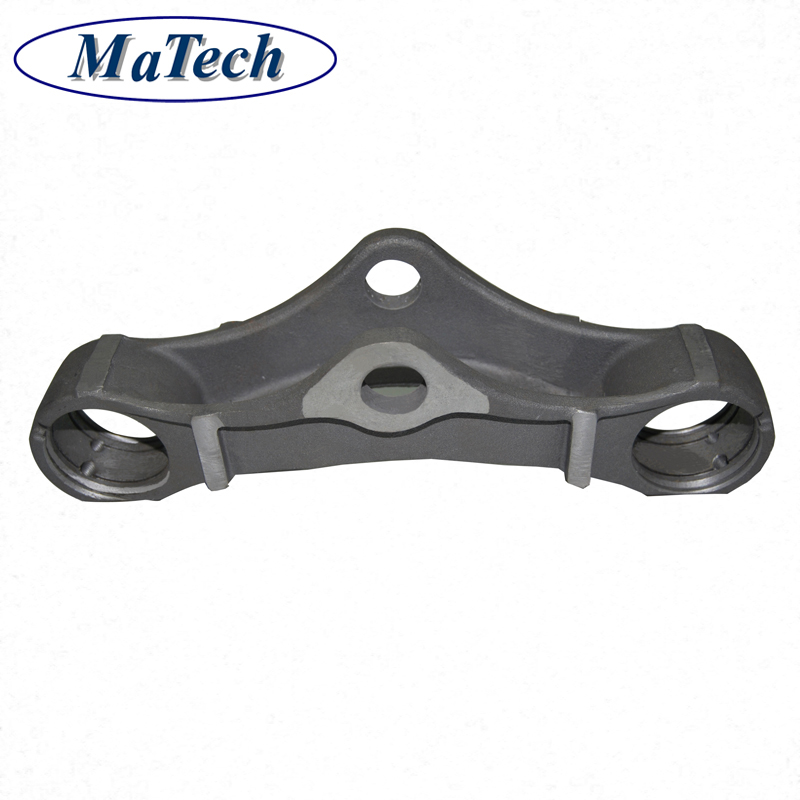

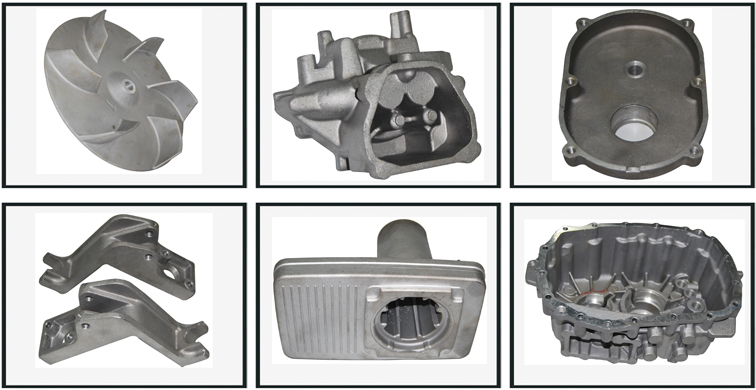

Products Show

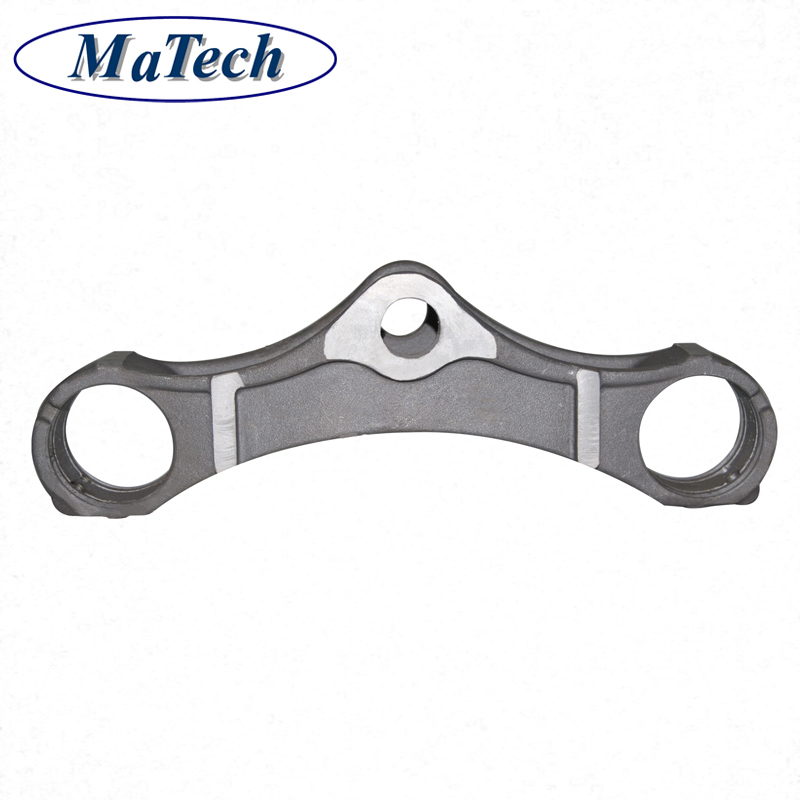

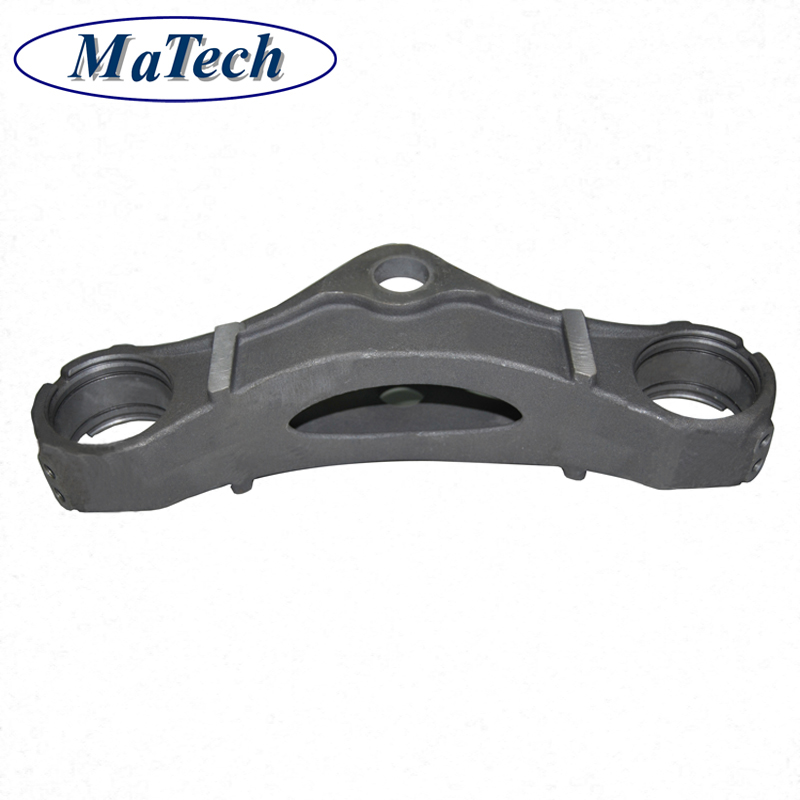

Some pictures of our parts:
We do OEM aluminum castings, we can product part strictly in according with your

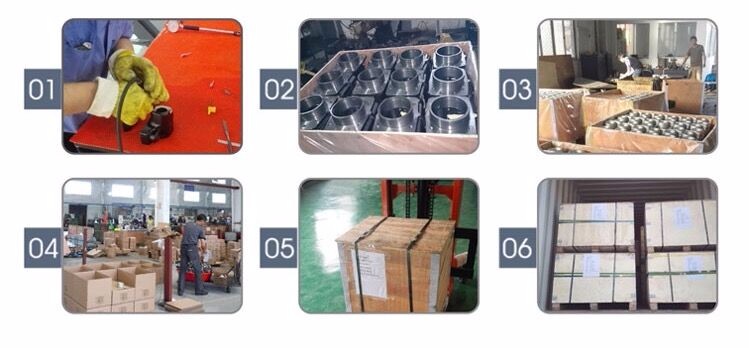

Packing & Delivery (Show As Above):
Inner Packing →Strong & waterproof plastic big is packed inside, to keep the product in safe condition.Or as customer requests.
Outer Packing →Multilayer wooden box with strong bandages, used for standard export package. Or customized as per customer's requirements.
Our Company
Shanghai Matech Machinery Manufacture Co., Ltd.--Branch of Matech Industry Ltd.
We specialize in Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system etc.
With keeping manufacturing process design, quality planning, key manufacturing processes and final quality control in house we are mastering key competence to supply quality mechanical parts and assembly to our customers for both Chinese and Export Market .
to satisfy different mechanical and functional requirements from our customers we are making a big range of metal products for our clients on base of different blanks solutions and technologies. These blanks solutions and technologies include processes of aluminum permanent casting.
During the early involvement of the customer's design process we are giving professional input to our customers in terms of process feasibility, cost reduction and function approach. You are welcome to contact us for technical enquiry and business cooperation.

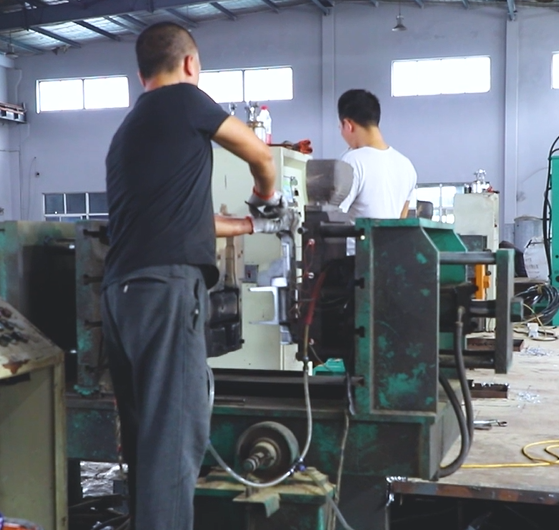

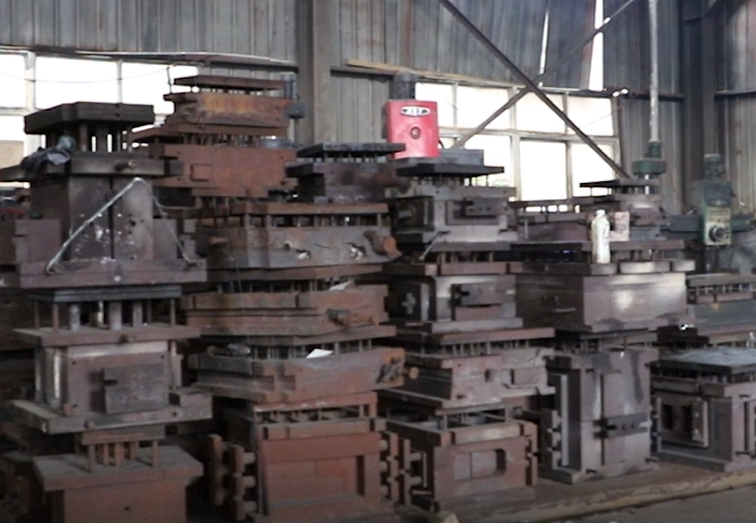

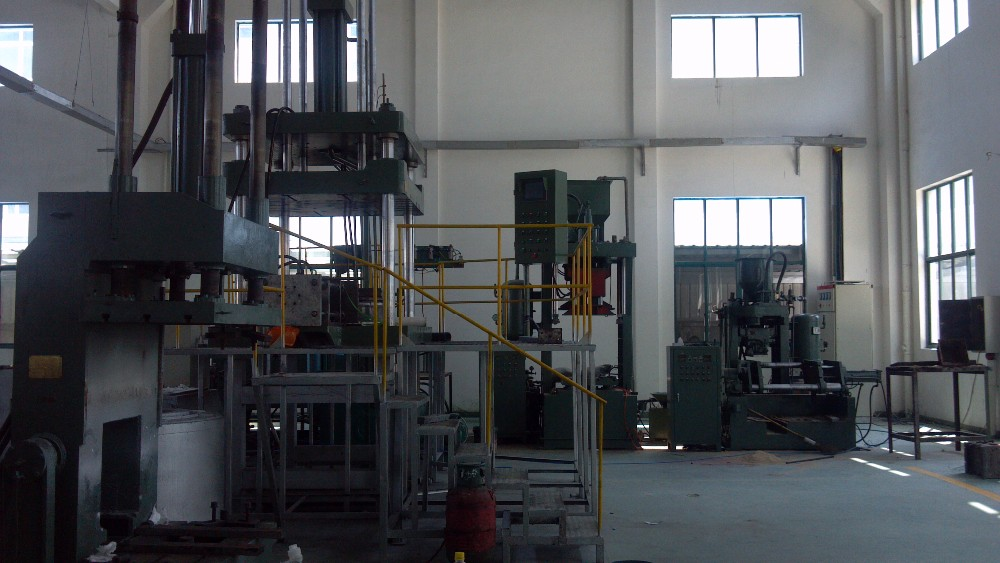

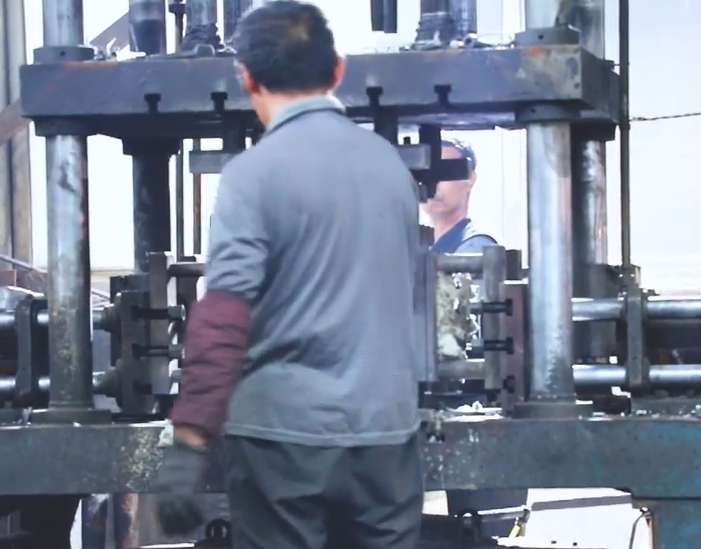

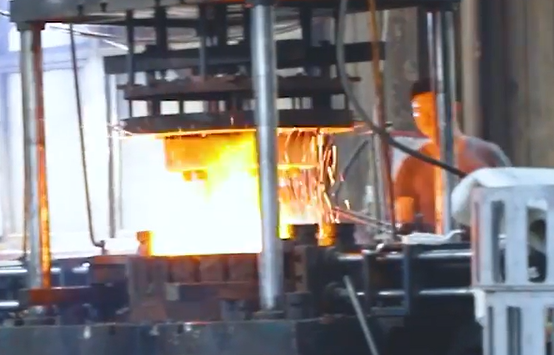

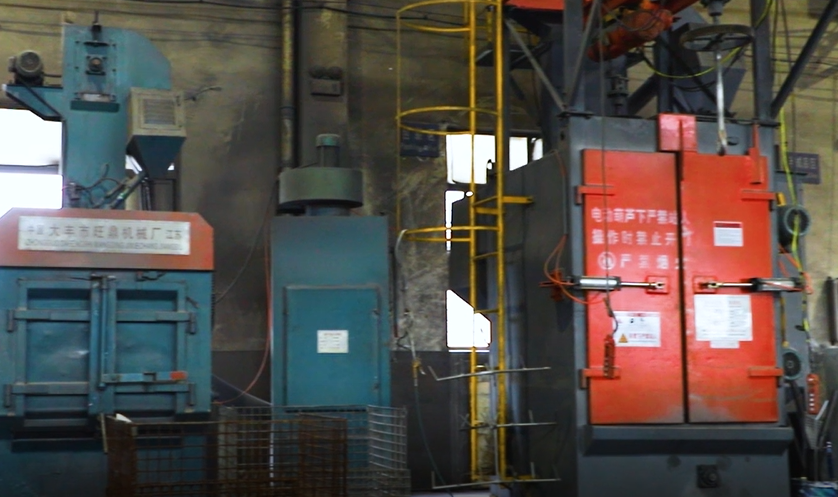

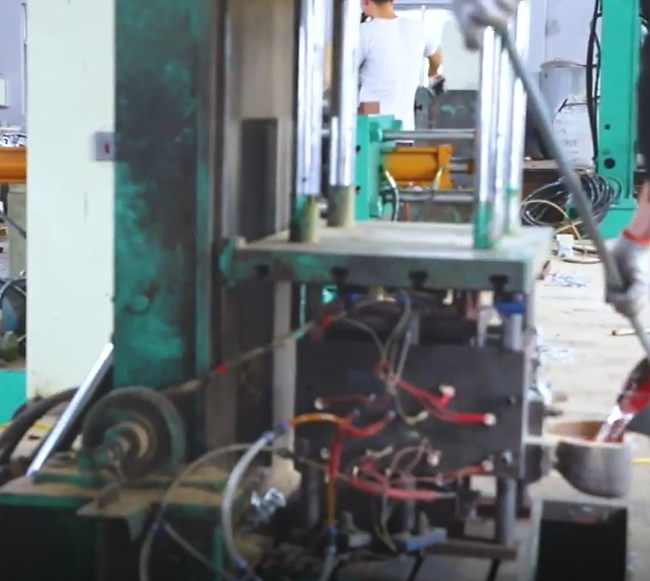

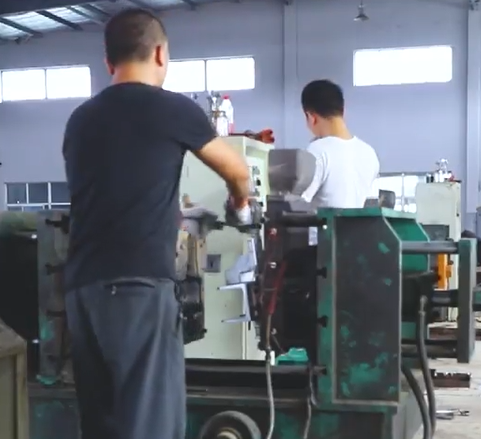

Product equipment:
Testing Equipment
Price-- Competitive.We know the market situation.Quality-- Quality Assurance and Quality Improvement.
We know the importance of material chemical composition,tolerances.Delivery time-- Time Guarantee. We know the loss of our customer when we delay.Excellent Service-- 24hours answer.72hours quotation
We answer for any quality issue,if there will be any.

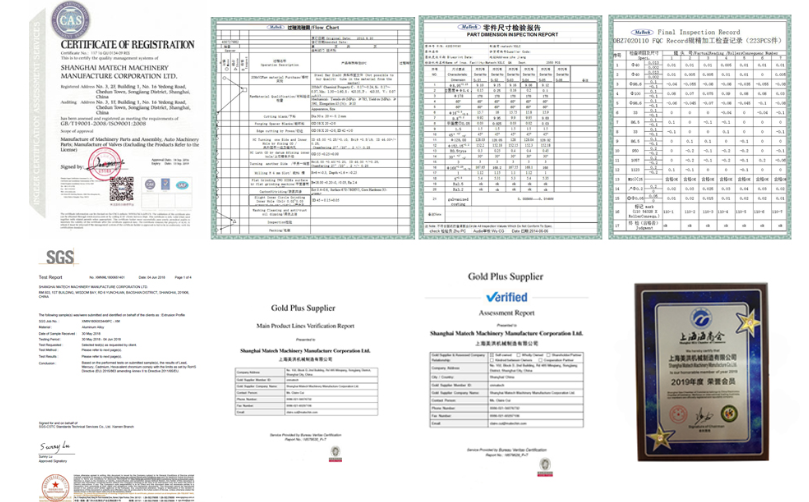

Our Certifications
Core Competence
1. Over 15 years professional manufacture experience. → We know better to your needs.2. One-stop Service of Custom mold design from Initial drawing design, Material selection assistance, Mold structure/Mold flow
analysis, Trial & mass production to Final assembly & shipment. → To ensure you get finished products with good assembly function.
3. High skilled and well-trained working team under good management environment. → To make sure high quality of your products.
4. Large and strong production capacity. → To meet your high demands very well.
5.Best price based on same quality requirements. →To help your project with most economical solution.
6. We have very strict quality control process included IQC/IPQC/FQC/OQC. → To deliver the qualified products for you.
7.Reliable Package & flexible in-time delivery. →To guarantee the product are well received in your side.
8. 24 hours on-line service with quick response. → To support your any inquiry or question
Customer Photo
Our Team are a big happy family, we not only supplying products to our customers , but also trying to build more values to our customers’ business by introducing suitable solution or technology to our customers with compromising parts’ function, technologies’ advantage, realization feasibility, cost control and quality reliability.

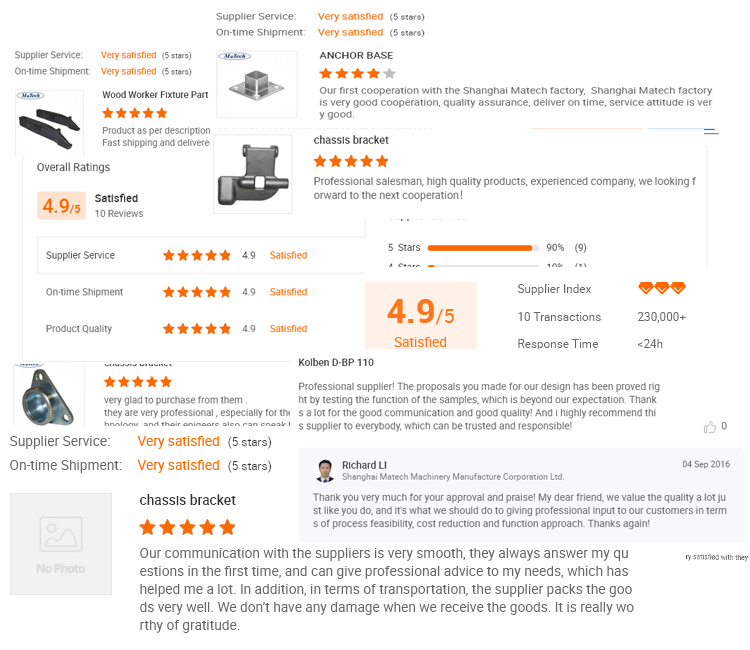

Customer evaluation
FAQ
1. What do you do?
We are a professional manufacturer with over 15 years’ export experience for designing and producing vehicle machinery parts. Focus on saving cost, function approach, production feasibility for your projects.
2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.
3. Can you make low pressure casting according to our drawing?
Yes, we can make according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4. Can you make low pressure casting based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.
5. What’s your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of low pressure casting.
We are a professional manufacturer with over 15 years’ export experience for designing and producing vehicle machinery parts. Focus on saving cost, function approach, production feasibility for your projects.
2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.
3. Can you make low pressure casting according to our drawing?
Yes, we can make according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4. Can you make low pressure casting based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.
5. What’s your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of low pressure casting.
