- Application:Vehicle machinery and industry parts
- Material:ZL101, A356, ADC12, A-S7G, AlSi7Mg
- Manufacturing Process:cast aluminum, gravity casting
- Casting Tolerance:CT5-7 for aluminum casting
- Machining Process:CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling etc.
- Surface Treatment:Anodize, Painting etc. As clients require
- Package:Multi-layer wooden box/pallet, with big plastic bag inside

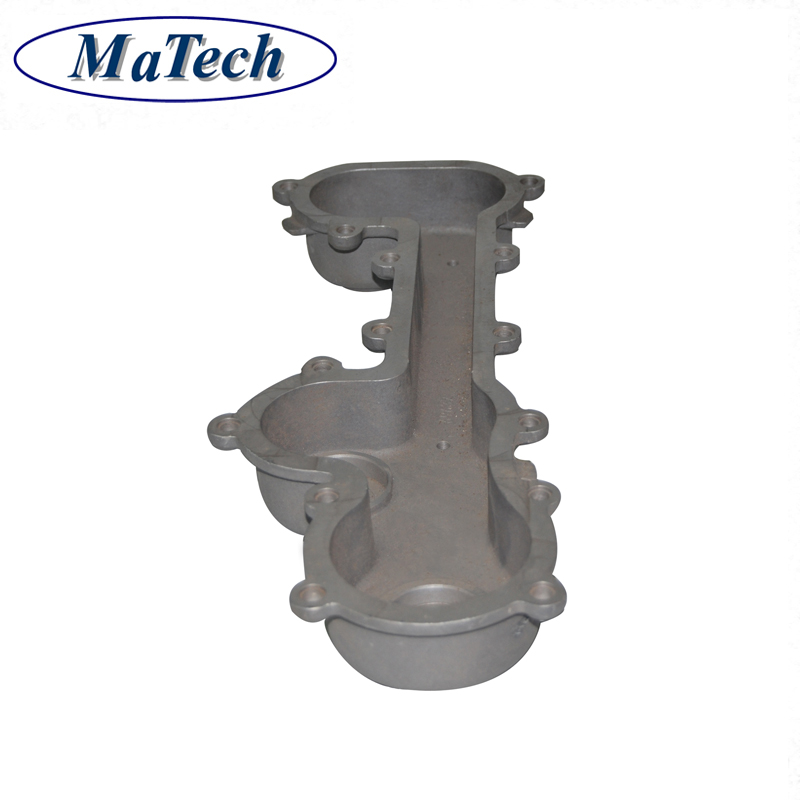

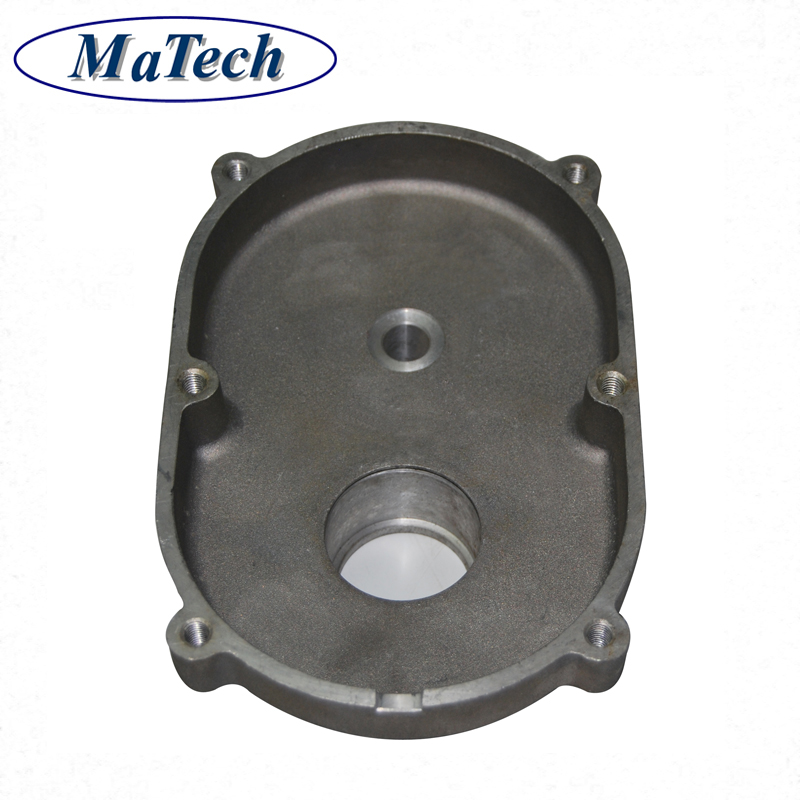

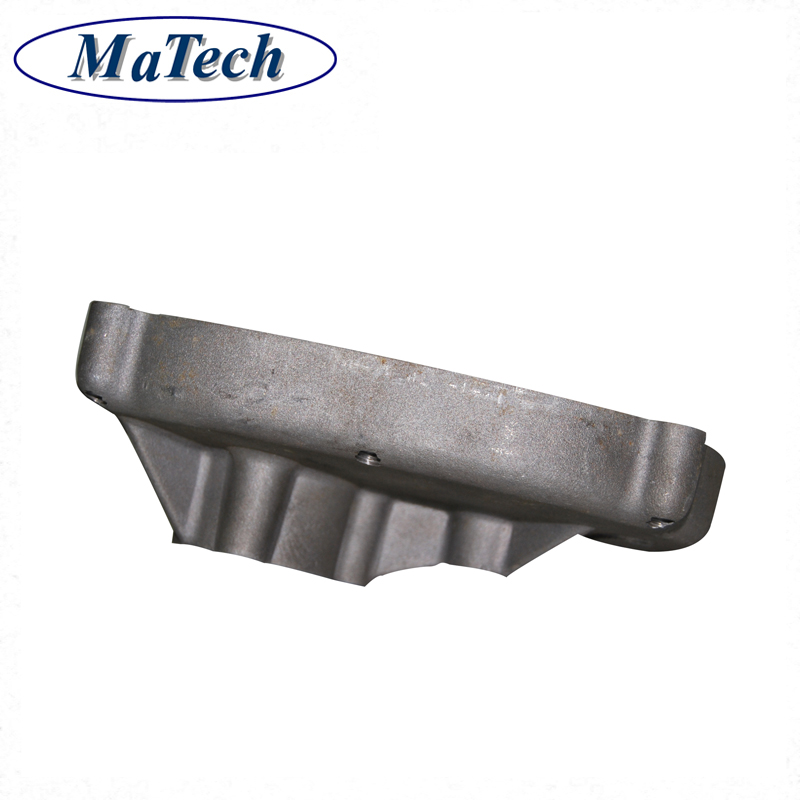

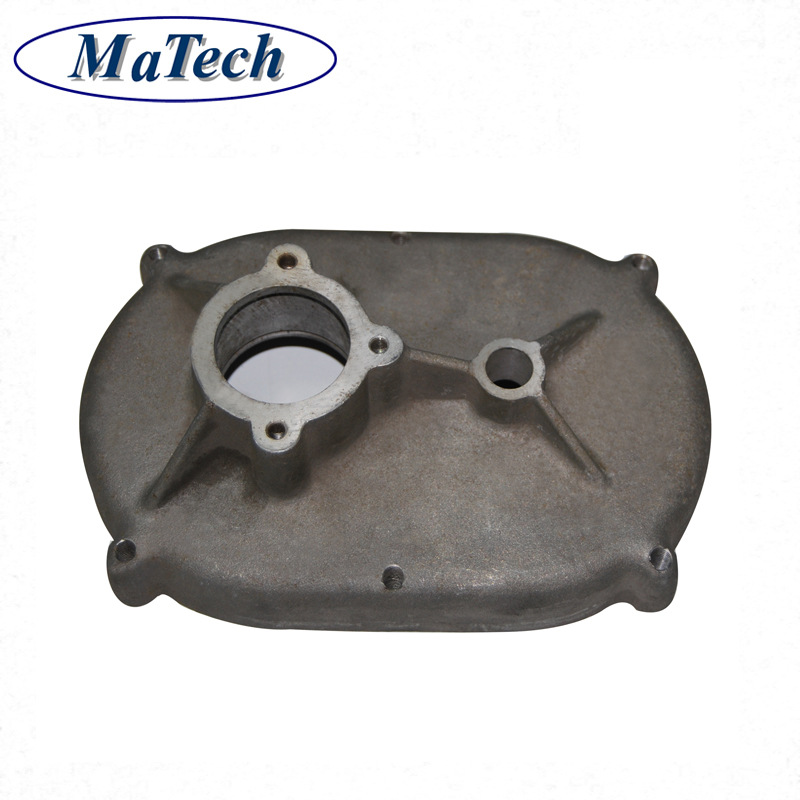

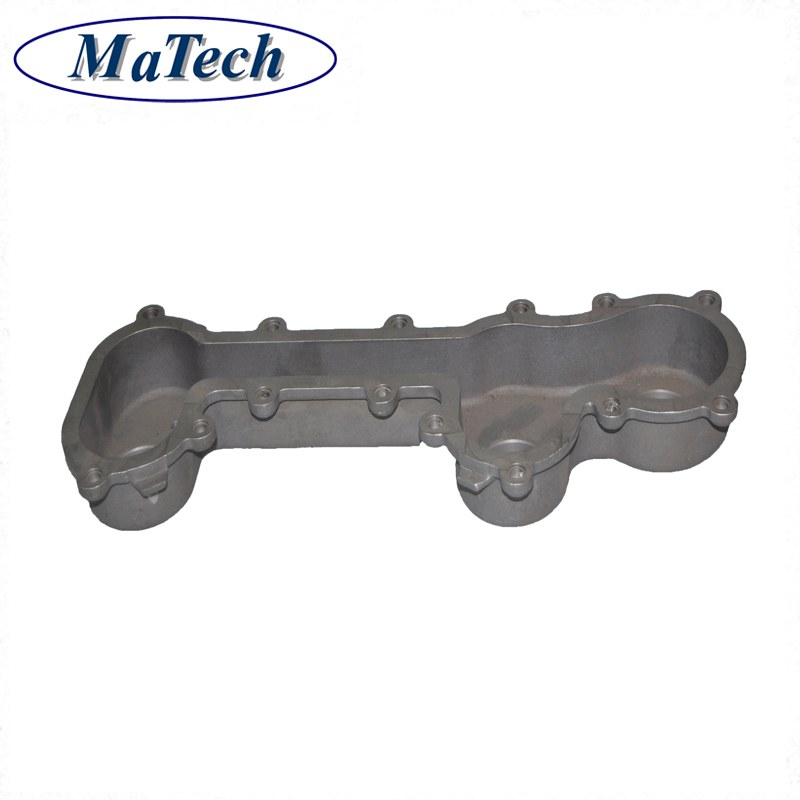

Aluminum Low Pressure Die Casting Gear Housing From Factory
Aluminum Low Pressure Die Casting Gear Housing From Factory
Item Name | Aluminum Low Pressure Die Casting Gear Housing From Factory |
General Products Application/Service Area | Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, such as engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc. |
Main blank Process for Steel Casting | Die cast, high pressure casting |
Blanks Tolerance -Casting Tolerance | CT4-7 for die casting |
Applicable Material for Aluminum casting | A380, ADC12;
A356.0/ZL101,GAlSi7Mg (3.2371.61)/AlSi7Mg/, A-S7G, Al Si Alloy, Al Cu Alloy ZL201 Al Mg Alloy ZL301,ZL302, Al Zn Alloy ZL401Zn Alloy Zamak 3, Zamak 5, Zamak 7, Zamak 2
OR according to customer requirement |
Casting Blank Size /Dimensions | 2 mm-600mm / 0.08inch-24inch according to customer requirement |
Casting Blank Weight | Range from 0.01kg-85kg |
Applicable Machining Process | CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc. |
Machining Tolerance | From 0.005mm-0.01mm-0.1mm |
Machined Surface Quality | Ra 0.8-Ra3.2 according to customer requirement |
Applicable Heat Treatment | Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching |
Applicable Finish Surface Treatment | Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting, |
MOQ of mass production | For aluminium casting: 100pcs, or client require For machining: 50pcs |
Lead Time | 45 days for our foundry casting |
Contact us now for technical proposals and quotation!
1. What do you do?
We are a professional manufacturer with over 15 years’ export experience for designing and producing vehicle machinery parts.
2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.
3. Can you make foundry aluminium cast according to our drawing?
Yes, we can make foundry aluminium cast according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4. Can you make foundry aluminium cast based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.
5. What’s your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of foundry aluminium cast.
We produce aluminum casting parts per your drawing or sample, with cost reduction and feasible tech proposals. Inquiry now!
