- Casting Tolerance: CT5-7 for die casting
- Machining Process: CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling etc.
- Surface Treatment: Powder Coating, or as customers request
- MOQ: 1pc of die casting is available.
- Package for die casting: Multi-layer wooden box/pallet, with big plastic bag inside.

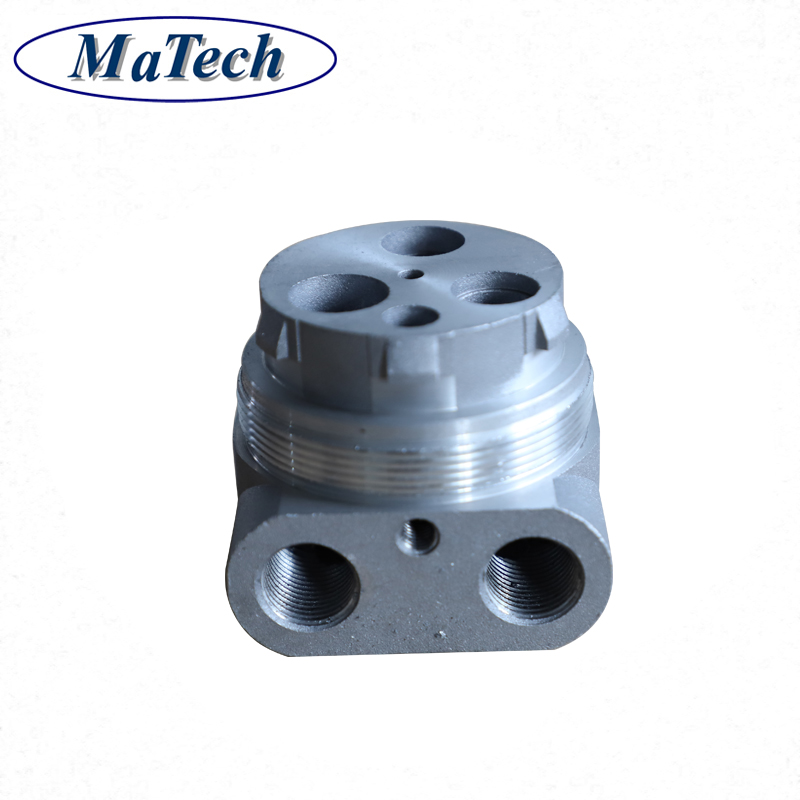

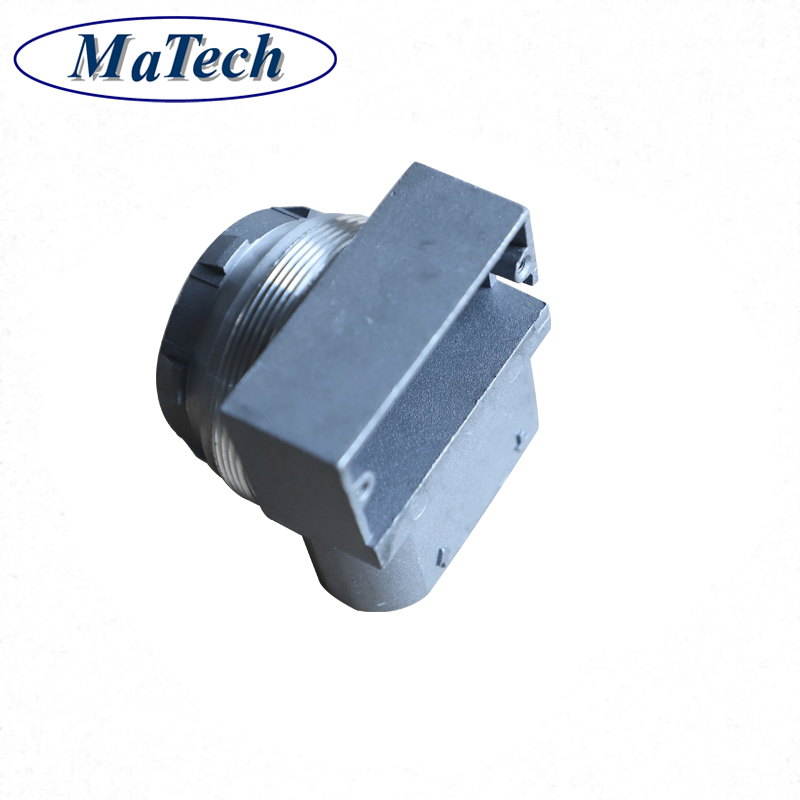

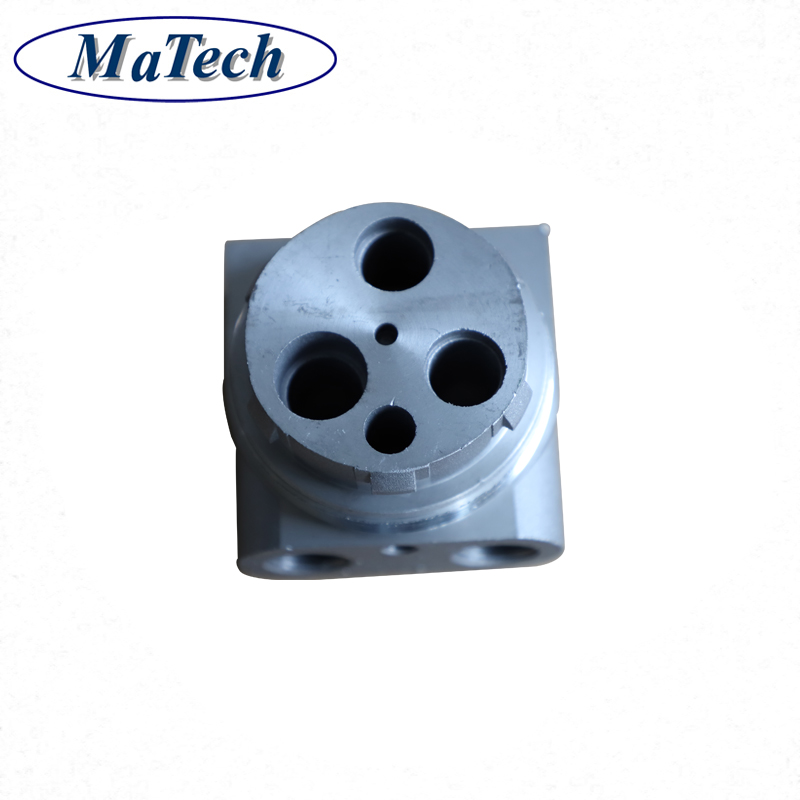

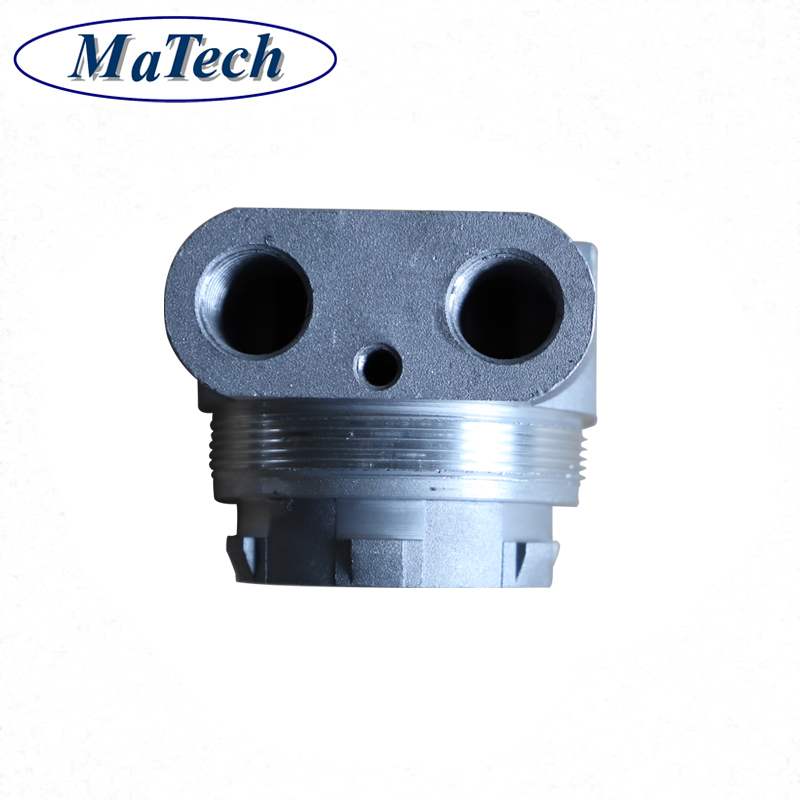

Foundry Customized High Performance Precision Zamak Die Casting
Item | Foundry Customized High Performance Precision Zamak Die Casting |
General Products Application/Service Area | Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, such as engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc. |
Main blank Process for zamak parts | Die Casting, |
Blanks Tolerance -Casting Tolerance | CT4-7 for Die Casting |
Applicable Material For Zinc Die Casting | Zn Alloy Zamak 3, Zamak 5, Zamak 7, Zamak 2 etc. Or according to customer requirements |
Casting Blank Size /Dimensions | 2 mm-1500mm / 0.08inch-60inch , or according to customer requirements |
Casting Blank Weight | Range from 0.01kg-50kg |
Applicable Machining Process | CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc. |
Machining Tolerance | From 0.005mm-0.01mm-0.1mm |
Machined Surface Quality | Ra 0.8-Ra3.2 according to customer requirement |
Applicable Finish Surface Treatment | Shot/sand blast, polishing, Primer Painting , Powder coating, ED- Coating, Finish Painting, Anodize (White or Black Color) |
MOQ of mass production | For Zinc Die Casting: 100pcs, or as customer required For Machining: 50pcs |
Lead Time | 45 days from the receipt date of deposit for zinc die casting |
Contact us now for technical proposals and quotation!
1. What do you do?
We are a professional manufacturer with over 15 years’ export experience for designing and producing vehicle machinery parts. Supply metal parts with function approach and saving costs for you.
2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.
3. Can you make die casting parts according to our drawing?
Yes, we can make die casting parts according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4. Can you make die casting parts based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.

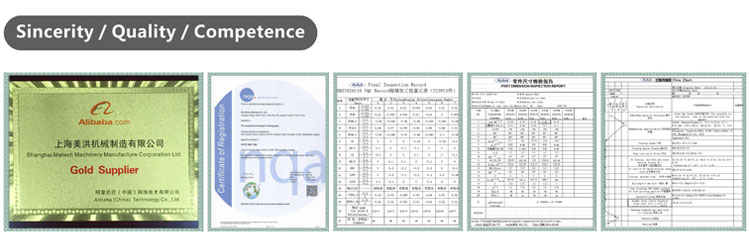

5. What’s your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting parts.
We produce die casting parts per your drawing or sample, with cost reduction and feasible tech proposals. Inquiry now!
