- Casting Tolerance: CT5-7 for aluminum casting
- Machining Process: CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling etc.
- Surface Treatment: Powder Coating, or as customers request
- MOQ: 1pc of die casting is available.
- Package for die casting: Multi-layer wooden box/pallet, with big plastic bag inside.

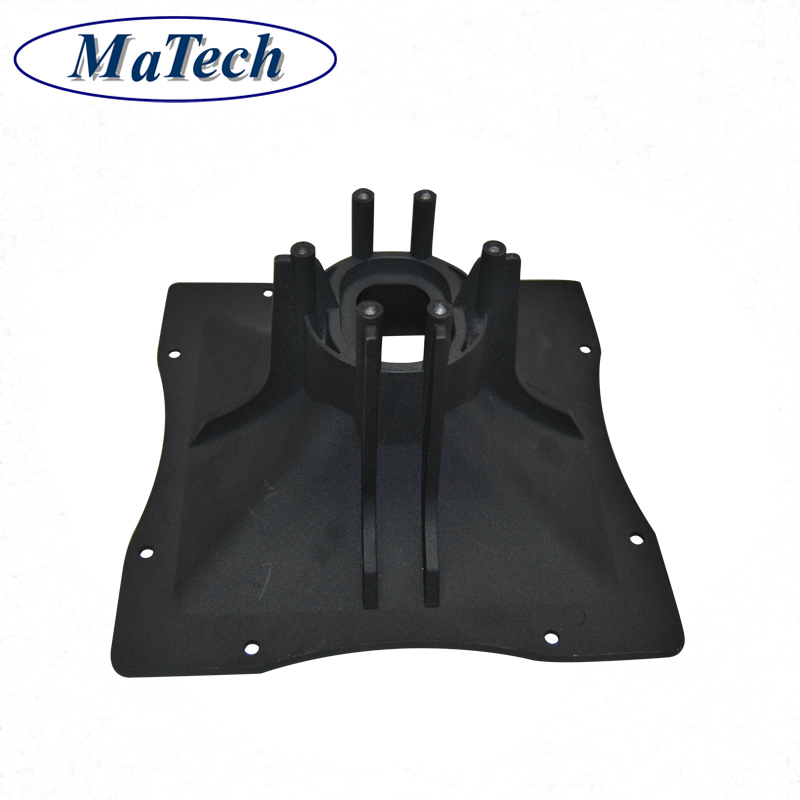

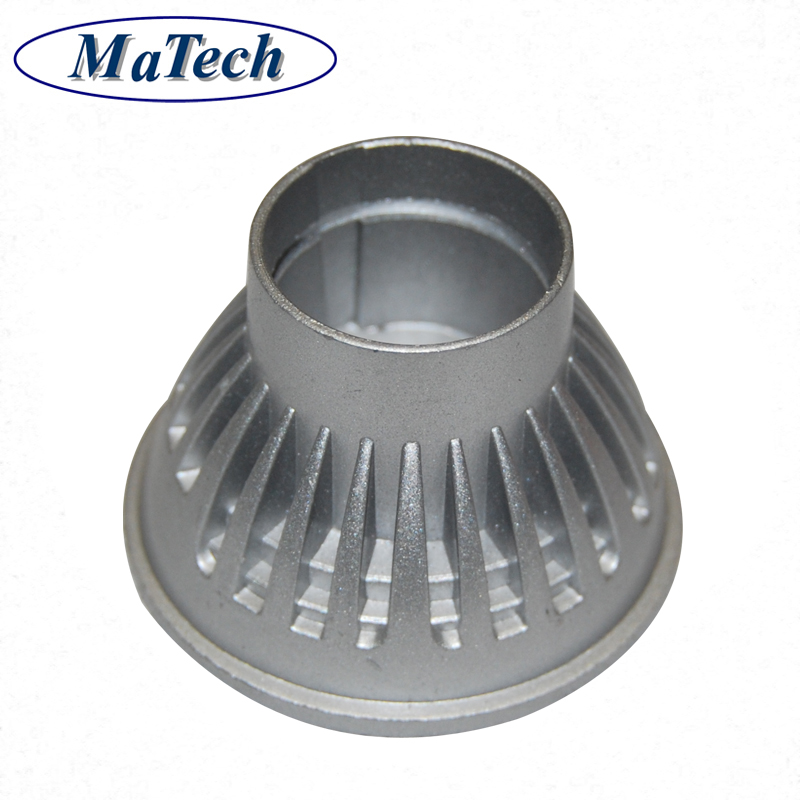

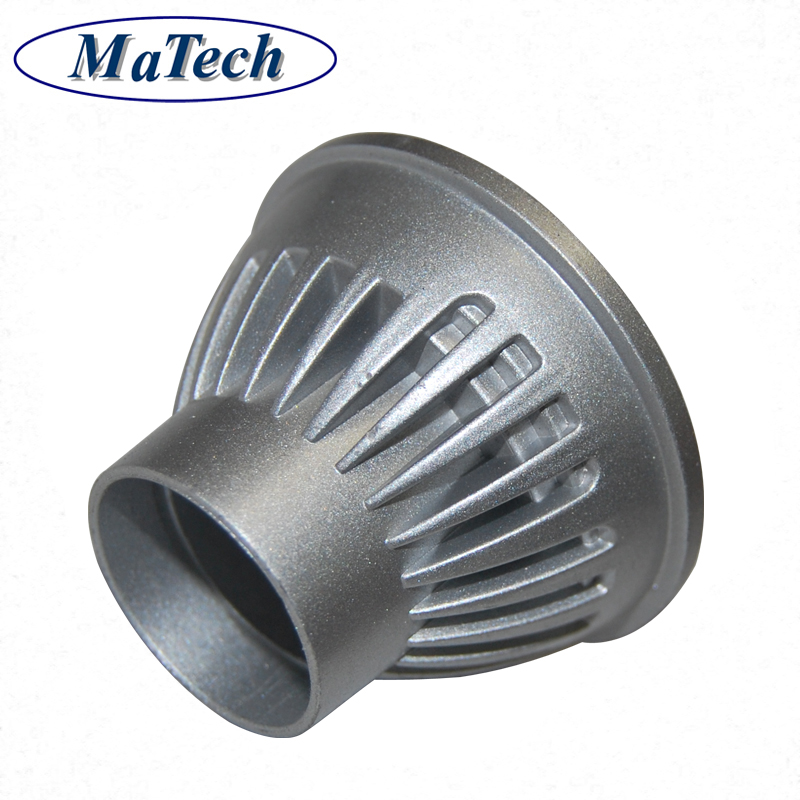

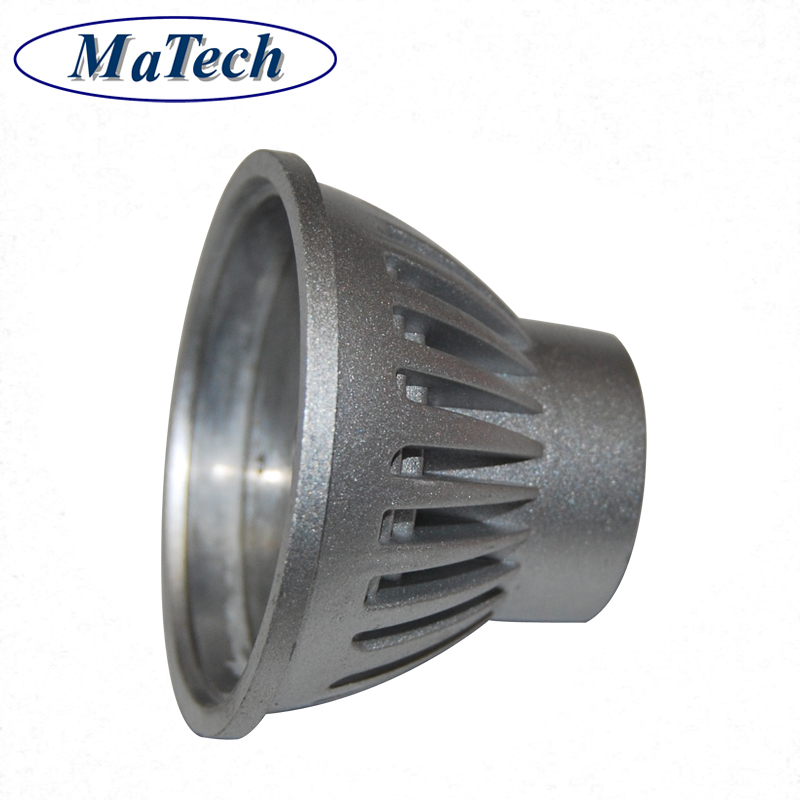

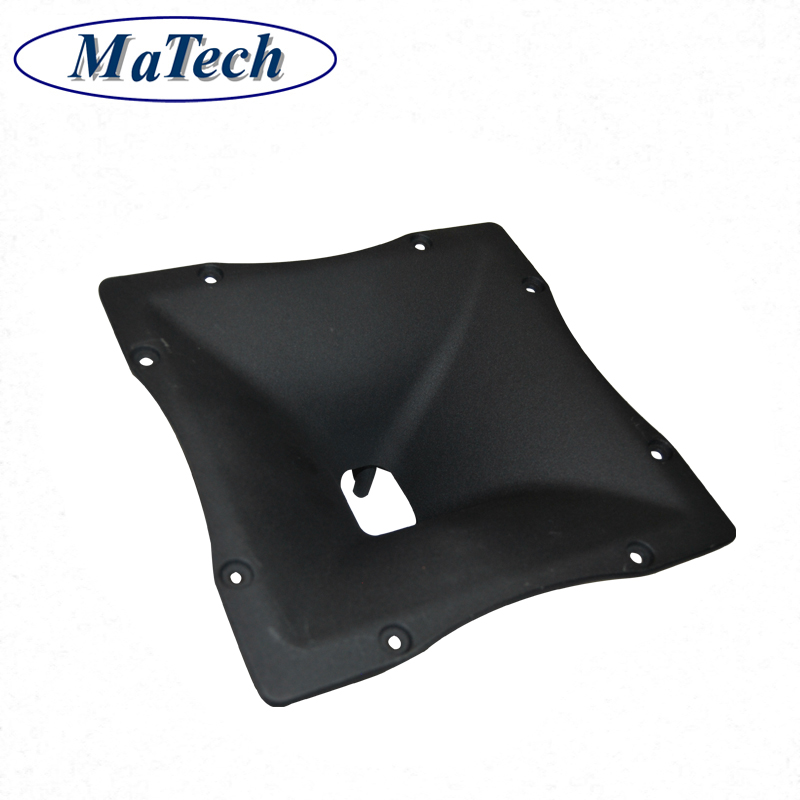

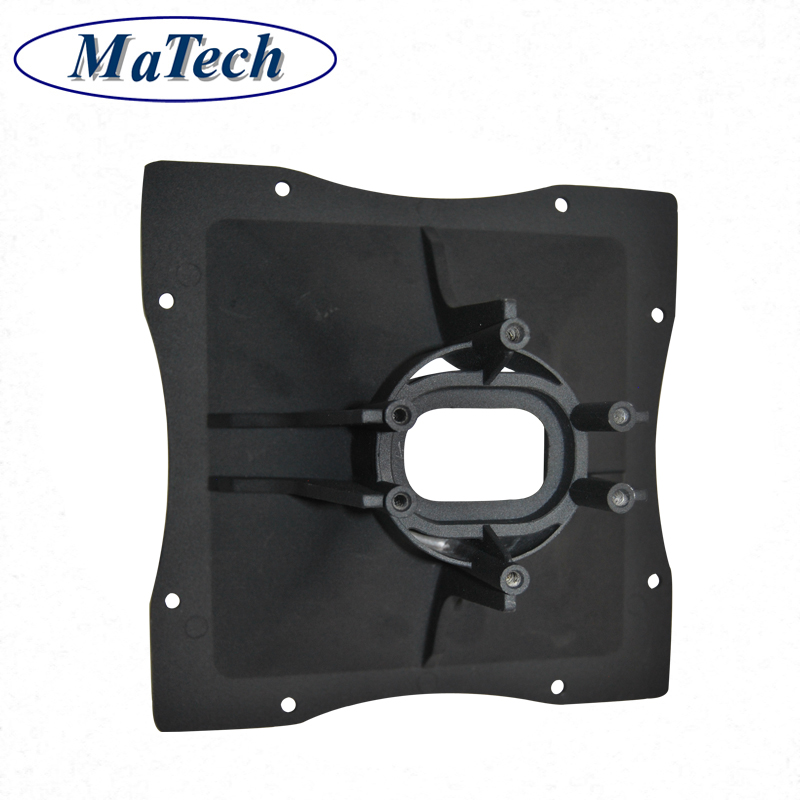

Aluminium Led Flood Street Light Housing Die Casting
Aluminium Led Flood Street Light Housing Die Casting
Item Name | Aluminium Led Flood Street Light Housing Die Casting |
General Products Application/Service Area |
Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system. Such as engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve, valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.
|
Main blank Process for Aluminum Casting | Die Casting, Permanent Molding /Gravity Casting, Low Pressure Casting, High Pressure Casting/Sand Casting, Extrusion Casting etc. |
Blanks Tolerance -Casting Tolerance |
CT4-6 for Permanent Molding, Die Casting, CT 9-11 for Sand Casting |
Applicable Material for casting |
A356.0/ZL101,GAlSi7Mg (3.2371.61)/AlSi7Mg/, A-S7G, Al Si Alloy, Al Cu Alloy ZL201 Al Mg Alloy ZL301,ZL302, Al Zn Alloy ZL401Zn Alloy Zamak 3, Zamak 5, Zamak 7, Zamak 2 Or according to customer requirements
|
Casting Blank Size /Dimensions | 2 mm-1500mm / 0.08inch-60inch , or according to customer requirements |
Casting Blank Weight | Range from 0.01kg-50kg |
Applicable Machining Process |
CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
|
Machining Tolerance | From 0.005mm-0.01mm-0.1mm |
Machined Surface Quality | Ra 0.8-Ra3.2 according to customer requirement |
Applicable Heat Treatment | T5~T6 |
Applicable Finish Surface Treatment | Shot/sand blast, polishing, Primer Painting , Powder coating, ED- Coating, Finish Painting, Anodize (White or Black Color) |
MOQ for mass production | For Aluminium Led Flood Street Light Housing Die Casting: 1000pcs |
Lead Time | About 45-50 days for Aluminium Led Flood Street Light Housing Die Casting |
Contact us now for technical proposals and quotation!
1. What do you do?
We are a professional manufacturer with over 15 years’ export experience for designing and producing vehicle machinery parts.
2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.
3. Can you make die casting according to our drawing?
Yes, we can make die casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4. Can you make die casting based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.
5. What is your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.
We produce die casting light housing parts per your drawing or sample, with cost reduction and feasible tech proposals. Inqui
