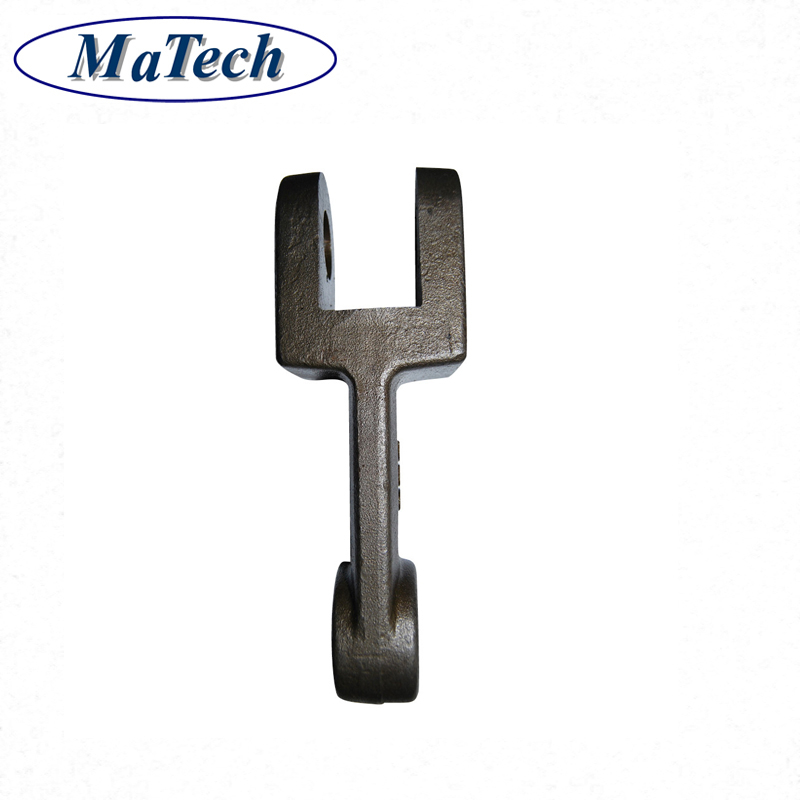

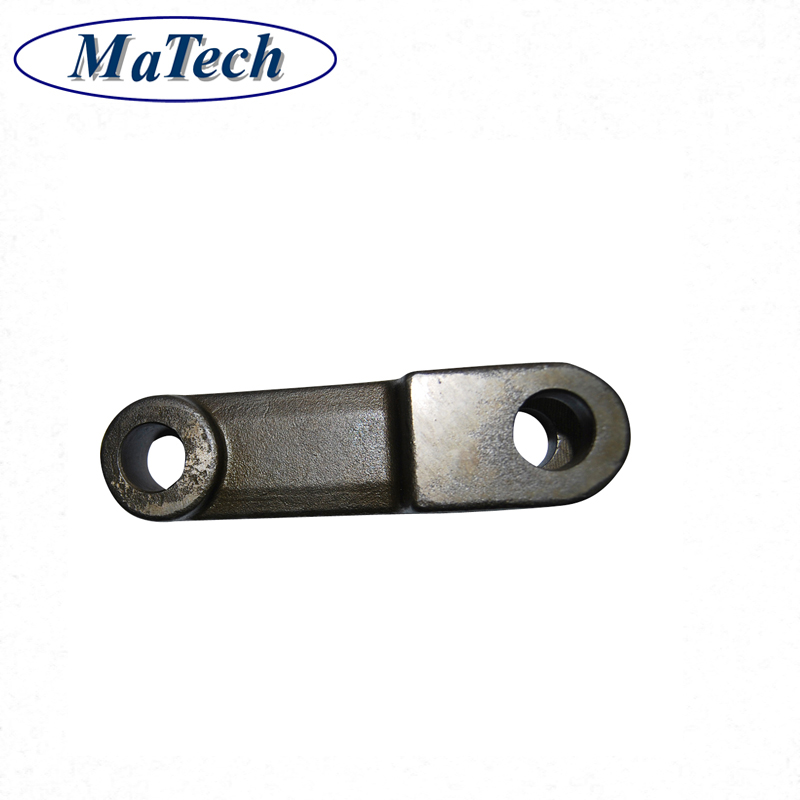

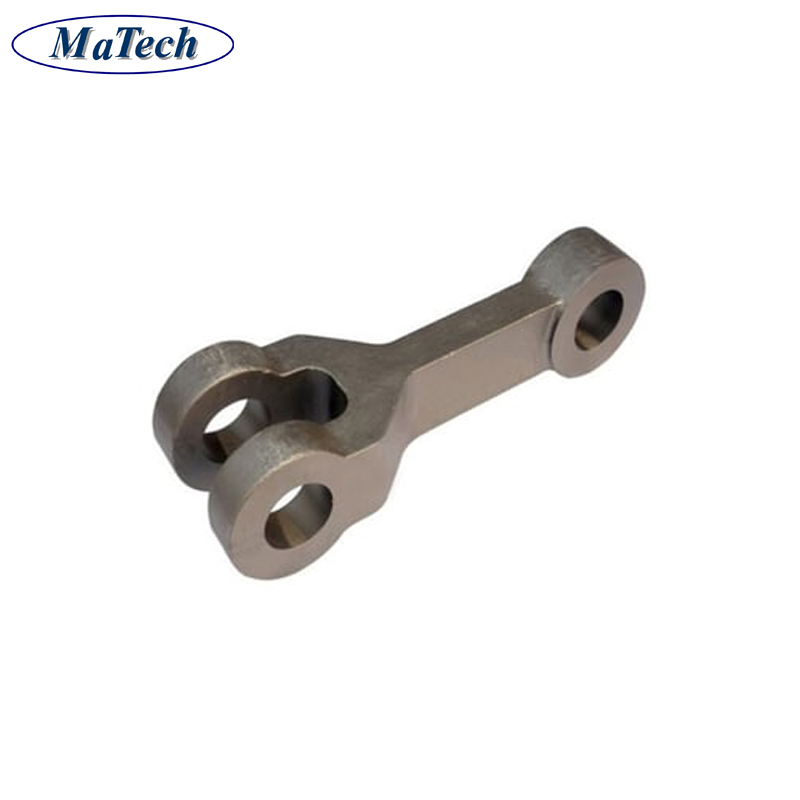

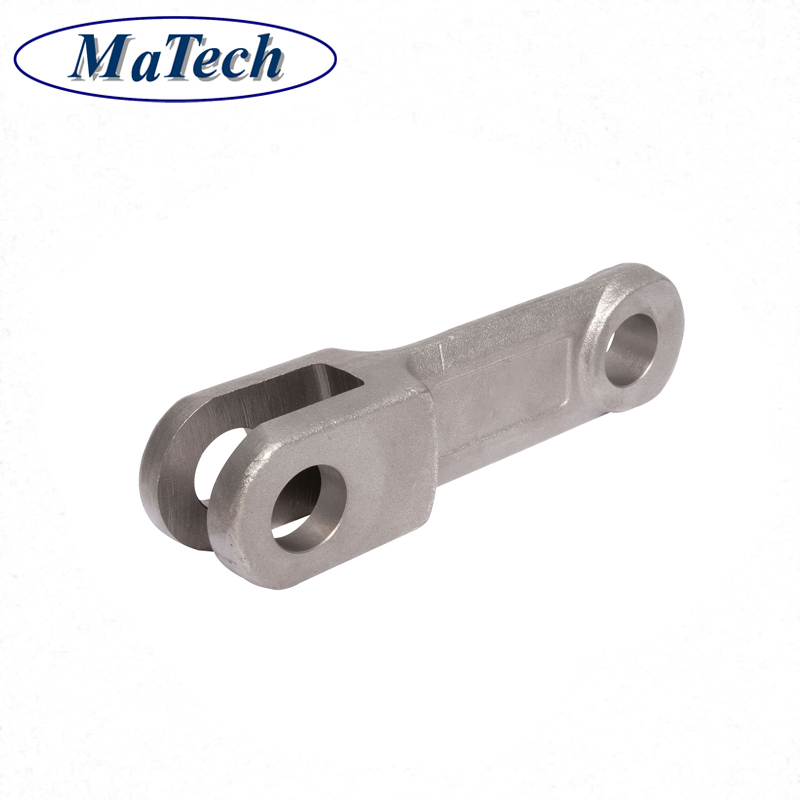

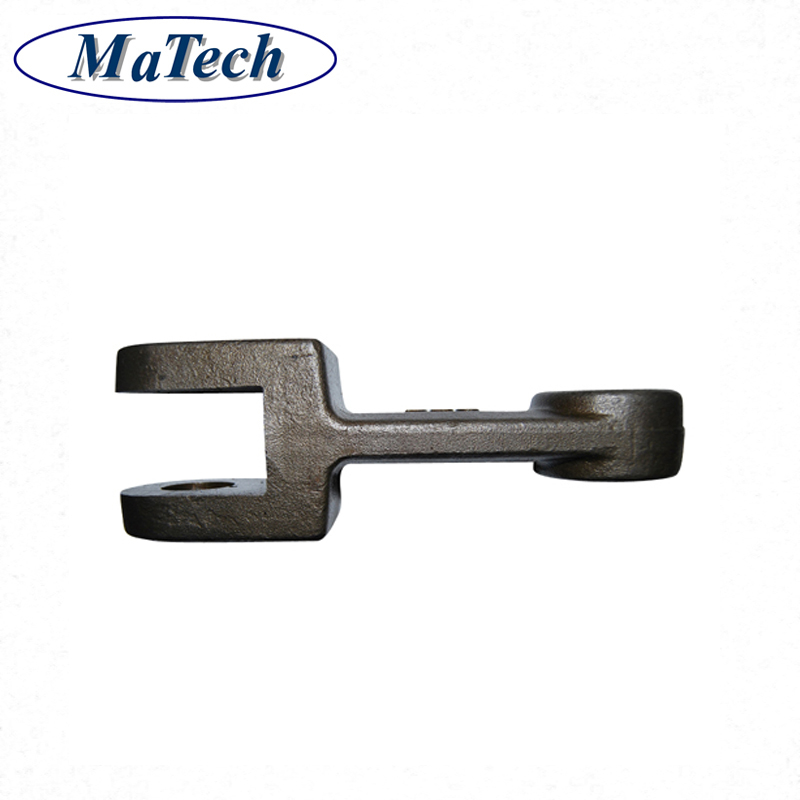

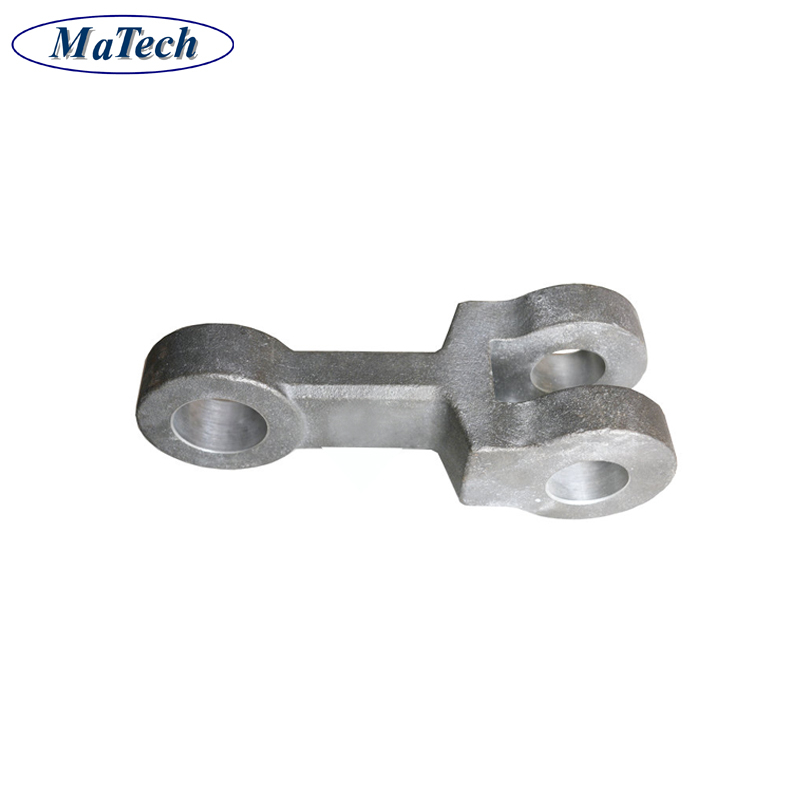

Manufacturer Fabricated Custom Alloy Steel Drop Forging Chain Parts

Products shown here are made to the requirements of specific customers and are illustrative of the types of manufacturing capabilities available within MATECH group of companies.
MATECH policy is that none of these products will be sold to 3rd parties without written consent of the customers to whom the tooling, design and specifications belong.

Manufacturer Fabricated Custom Alloy Steel Drop Forging Chain Parts

Manufacturer Custom Made 4140 Forged Alloy Steel Yoke Parts(图1)

SINCERITY                   QUALITY                    COMPETENCE                   ENTERPRISING

Products Description

Product name	Manufacturer Fabricated Custom Alloy Steel Drop Forging Chain Parts
Production Process for Forged parts	Forging, press, plus machining ,heat treatment , assembly
Blanks Tolerance:	+/-0.3~+/-2 mm
Production Applicable Material:	Stainless steel: 303, 304, 316L, etc
	Steel: 4140, Q235, Q345B, 20#, 45#, etc
	Aluminum: AL 6061-T6, 6063, 7075-T, etc
Forging Blank Size /Dimensions:	142 mm- 300mm or according to customer requirement
Blanks Weight:	Range from 0.1kg-1000kg
Applicable Machining Process：	CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming etc.
Machining Tolerance：	From 0.005mm-0.01mm-0.1mm
Machined Surface Quality：	Ra 0.8-Ra3.2 according to customer requirement
Applicable Heat Treatment：	Normalization , quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching
Applicable Finish Surface Treatment：	Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting,for stainless steel forg
MOQ of mass production：	For forging parts: 500 PCs For Machining: 50 Pcs
Lead Time：	30-40 days from the receipt date

Manufacturer Custom Made 4140 Forged Alloy Steel Yoke Parts(图3)

Manufacturer Custom Made 4140 Forged Alloy Steel Yoke Parts(图4)

Manufacturer Custom Made 4140 Forged Alloy Steel Yoke Parts(图5)

Manufacturer Custom Made 4140 Forged Alloy Steel Yoke Parts(图6)

Manufacturer Custom Made 4140 Forged Alloy Steel Yoke Parts(图7)

Manufacturer Custom Made 4140 Forged Alloy Steel Yoke Parts(图8)

Manufacturer Custom Made 4140 Forged Alloy Steel Yoke Parts(图9)

Manufacturer Custom Made 4140 Forged Alloy Steel Yoke Parts(图10)

Manufacturer Custom Made 4140 Forged Alloy Steel Yoke Parts(图11)

Manufacturer Custom Made 4140 Forged Alloy Steel Yoke Parts(图12)

Manufacturer Custom Made 4140 Forged Alloy Steel Yoke Parts(图13)

Manufacturer Custom Made 4140 Forged Alloy Steel Yoke Parts(图14)

FAQ

1.Does samples available before order? A: Yes, if it is the stock product, the sample can be sent for free in 3 days, if customized, refer the tooling made lead time (45~60says).
2.What's the advantage of your factory ? A: 2.1We are a professional manufacturer with over 15 years' export experience for provide customers with manufacturing feasibility suggestions and customize products based on drawings. 2.2 ISO9001-2015, SGS certificate 2.3 Have strong Mould and QC Department 2.4 Our salesman understands technical drawings very well, so it is convenient to communicate with your technology.
3. Can you make forging parts according to our drawing? Yes, we can make casting according to your drawing, 2D drawing(in pdf, dwg format), or 3D cad model(in step, stp format). If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4.How can I get samples? If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.
5.Can you make parts based on our samples? Yes, we can make measurement based on your samples to make drawings for tooling making.
6.What's your quality control device in house? We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UTSonic as NDT checking method to control the forging detect under the surface of forging.

Custom made forging parts based on your drawings or samples.
