- Material: Aluminum or other metal. As clients require
- Manufacturing Process: casting, machining
- MOQ: 1pc sample for test is available
- Lead Time: About 40 days for casting
- Package of stamping: Multilayer wooden box with big plastic bag inside, as customer request
- Service: Custom Make Part with factory price

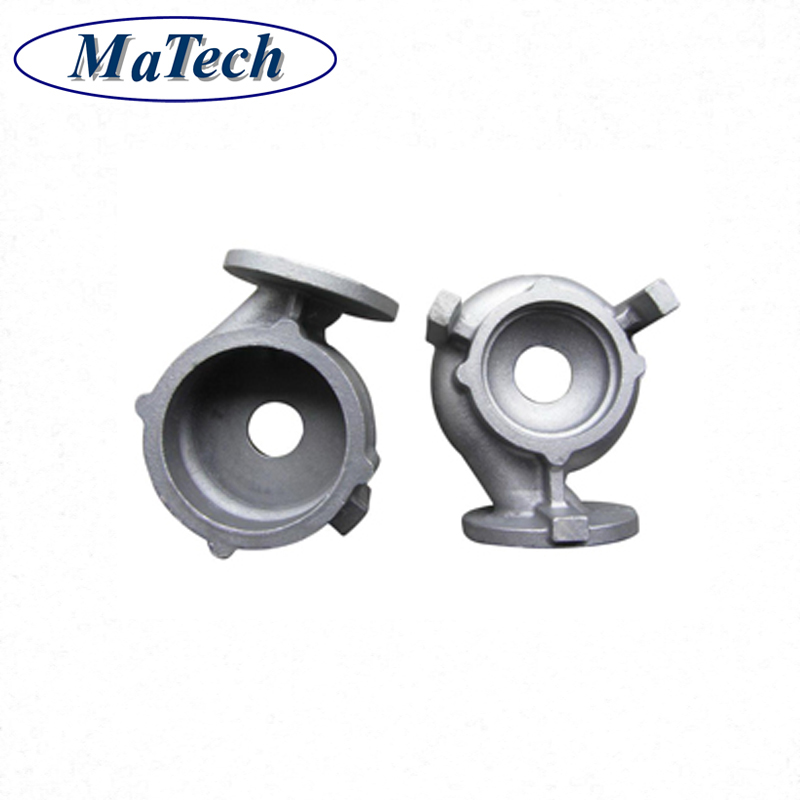

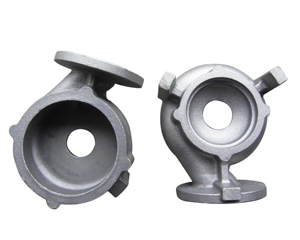

Custom OEM Aluminum Casted Casting Automotive Water Pump Housing
Custom OEM Aluminum Casted Casting Automotive Water Pump Housing
Item Name | Custom OEM Aluminum Casted Casting Automotive Water Pump Housing |
General Products Application/Service Area |
Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.
|
Main blank Process for Casting |
Die casting, or low pressure casting, gravity casting, permanent mold casting
|
Blanks Tolerance -Casting Tolerance | CT4-6 for die casting, CT5-7 for permanent mold casting |
Applicable Material |
See Table Below (Ductile Iron Casting, Grey Iron Casting) Or aluminum, stainless steel, alloy stee etc. According to customer requirement
|
Casting Blank Size /Dimensions | 2 mm-2000mm / 0.08inch-79inch for casting iron, according to customer requirement |
Casting Blank Weight | Range from 0.01kg-1000kg for casting iron |
Applicable Machining Process |
CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
|
Machining Tolerance | From 0.005mm-0.01mm-0.1mm |
Machined Surface Quality | Ra 0.8-Ra3.2, according to customer requirement |
Applicable Heat Treatment |
Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching
|
Applicable Finish Surface Treatment |
Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting.
|
MOQ of mass production | For casting water pump housing: 100pcs, or as clients required For Machining: 50pcs |
Lead Time | 45 days from the receipt date of deposit for casting water pump housing |
Ductile Iron Casting Material Comparison Table:
Cast iron with nomular graphite DIN EN 1563 | Germany DIN 1693 | France NF | Great Britain BS | Netherlands NEN | Sweden MNC | USA ASTM A536 |
EN-GJS-350-22-LT | GGG-35.3 | FGS 370-17 | 370/17 | GN 38 | 0717-15 | ---- |
EN-GJS-400-18-LT | GGG-40.3 | ---- | ---- | ---- | ---- | 60-40-18 |
EN-GJS-400-15 | GGG-40 | FGS-400-12 | 420/12 | GN 42 | 0717-02 | 60-40-18 |
EN-GJS-400-10 | ---- | ---- | 420/12 | ---- | ---- | 65-45-12 |
EN-GJS-500-7 | GGG-50 | FGS-500-7 | 500/7 | GN 50 | 0727-02 | 65-45-12/ 80-55-06 |
EN-GJS-600-3 | GGG-60 | FGS-600-3 | 600/3 | GN 60 | 0732-03 | 80-55-06 |
EN-GJS-700-2 | GGG-70 | FGS-700-2 | 700/2 | GN 70 | 0737-01 | 100-70-03 |
EN-GJS-800-2 | GGG-80 | FGS-800-2 | 800/2 | 120-90-02 | ||
EN-GJS-1000-5 (DIN EN 1564) | GGG-100B/A | ---- | ---- | ---- | ---- | 850-550-10 |
EN-GJS-AX NiSiCr35 5 2 | GGG- NiSiCr 35 5 2 | FGS- Ni35Si5Cr2 | S5S | ---- | ---- | Type D-5S |
Grey Iron Casting Material Comparison Table:
Cast iron with lamellar graphite DIN EN 1561 | Germany DIN 1691 | France NF | Great Britain BS | Netherlands NEN | Sweden MNC | USA ASTM A48 |
EN-GJL-150 | GG-15 | Ft 15 D | Grade 150 | GG 15 | 01 15-00 | 20 B / 25 B |
EN-GJL-200 | GG-20 | Ft 20 D | Grade 180/220 | GG 20 | 01 20-00 | 25 B / 30 B |
EN-GJL-250 | GG-25 | Ft 25 D | Grade 220/260 | GG 25 | 01 25-00 | 35 B / 40 B |
EN-GJL-300 | GG 30 | Ft 30 D | Grade 300 | GG 30 | 01 30-00 | 40B / 45 B |
1. What do you do?

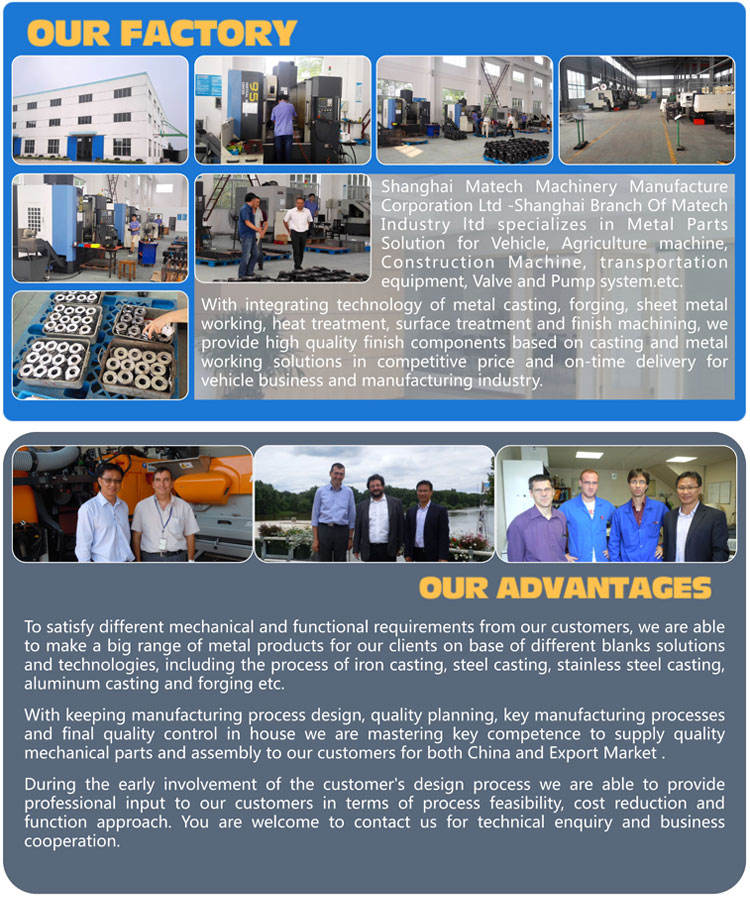

We are a professional manufacturer with over 15 years’ export experience for designing and producing vehicle machinery parts.
2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.
3. Can you make casting water pump housing according to our drawing?
Yes, we can make casting water pump housing according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4. Can you make casting pump parts based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.

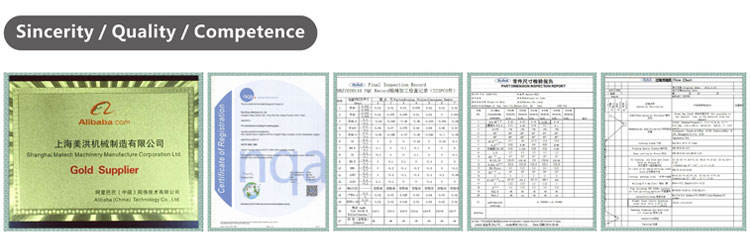

5. What’s your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting part.
We produce metal parts, pump casing, impeller, brackets, housings, shafts etc., and focus on cost reduction and feasible tech
