- Material: Steel forging 20CrMnTi, ASTM5140, 20MnCr5 etc. As clients require
- Blank Process: Forging plus machining ,heat treatment , assembly
- Machining: CNC Machining, Turning, Drilling, Milling, boring
- Machining Tolearnce: Up to IT7, Ra 0.8~3.2 , according to customer requirement
- MOQ: 1pc sample for test is available
- Lead Time: About 55-60 days for Steel Forging
- Package of Steel Forging: Multilayer wooden box with big plastic bag inside, as customer request
- Service: Custom Steel Forging with factory price

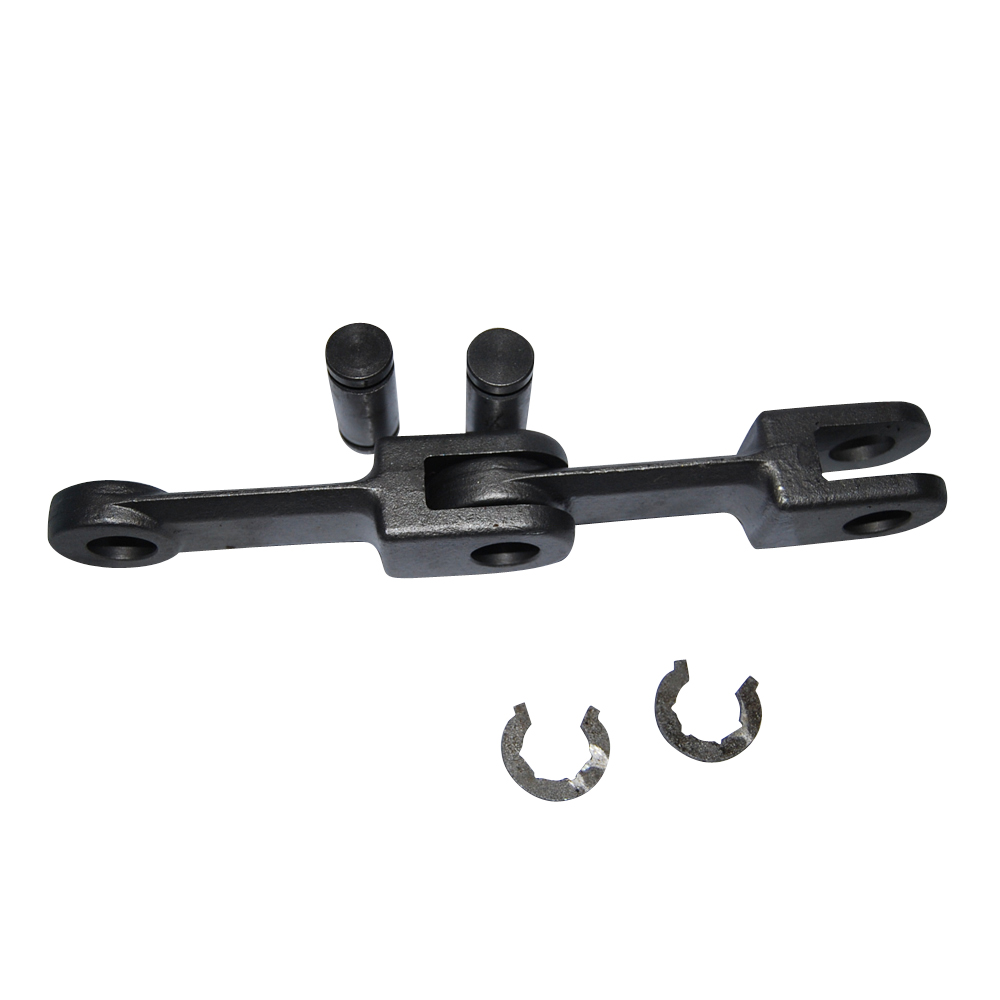

Forged Hot Cold Drop Forging Carbon Steel Conveyor Parts
Forged Hot Cold Drop Forging Carbon Steel Conveyor Parts
Item Name | Forged Hot Cold Drop Forging Carbon Steel Conveyor Parts |
General Products Application/Service Area | Metal Parts Solution for Vehicle, Agriculturemachine, Construction Machine, transportation equipment, Valve and Pump system, such as bearing sleeve, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc. |
Main blank Process for Forged parts | Forging , Press |
Blanks Tolerance | +/-0.3~+/-2 mm |
Applicable Material | Carbon steel, Low Carbon steel, middle carbon steel, 40Cr, 20CrMnTi, 20CrNiMo etc. |
Forging Blank Size /Dimensions | 142 mm- 300mm or according to customer requirement |
Blanks Weight | Range from 0.1kg-1000kg |
Applicable Machining Process | CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming etc. |
Machining Tolerance | From 0.005mm-0.01mm-0.1mm |
Machined Surface Quality | Ra 0.8-Ra3.2 according to customer requirement |
Applicable Heat Treatment | Normalization , quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching |
Applicable Finish Surface Treatment | Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting, |
MOQ of mass production | For forged carbon steel conveyor parts:100pcs , or as customer requried For Machining: 50 Pcs |
Lead Time | 45days for forging carbon steel conveyor parts |
Contact us now for technical proposals and quotation!
1. What do you do?
We are a professional manufacturer with over 15 years’ export experience for designing and producing vehicle machinery parts.
2. How can I get some samples?
If you need, we are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.
3. Can you make forging carbon steel conveyor parts according to our drawing?
Yes, we can make forging carbon steel conveyor parts according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4. Can you make forging carbon steel conveyor parts based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.
5. What’s your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the detect under the surface of forging carbon steel conveyor parts.
We produce forging parts per your drawing or sample, focus on cost reduction and feasible tech proposals for you. Inquiry us
