- Size:customized size
- Material:Steel, carbon steel, stainless steel, as customer's requirments
- Surface Treatment:Painting, Zinc plated or as client require
- Manufacture Process:precision investment casting, lost wax casting
- Lead time: around 45 days for stainless steel castings
- Package:Multi-layer wooden box/pallet, with big plastic bag inside

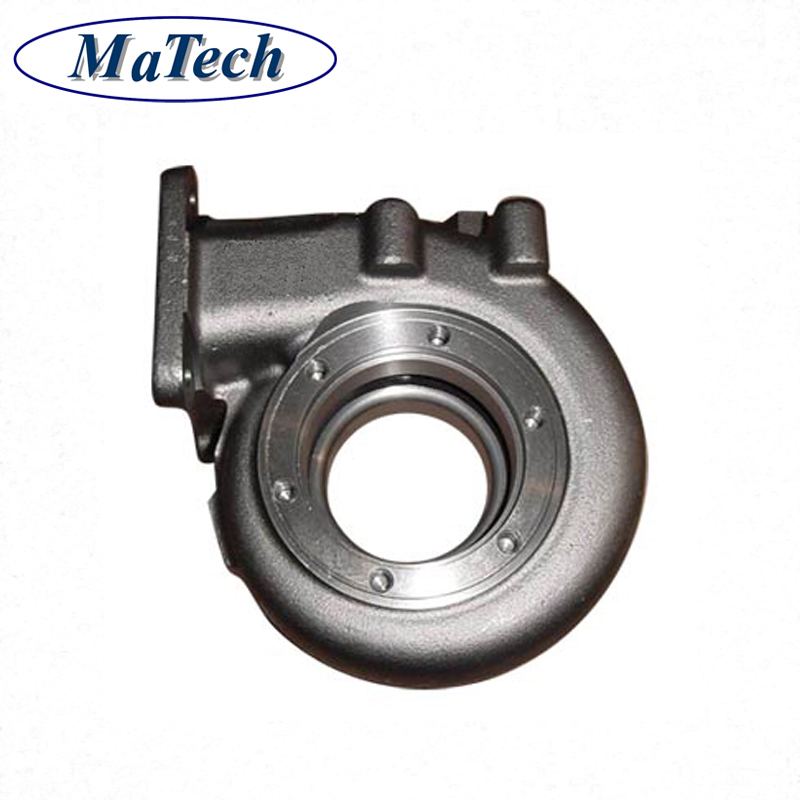

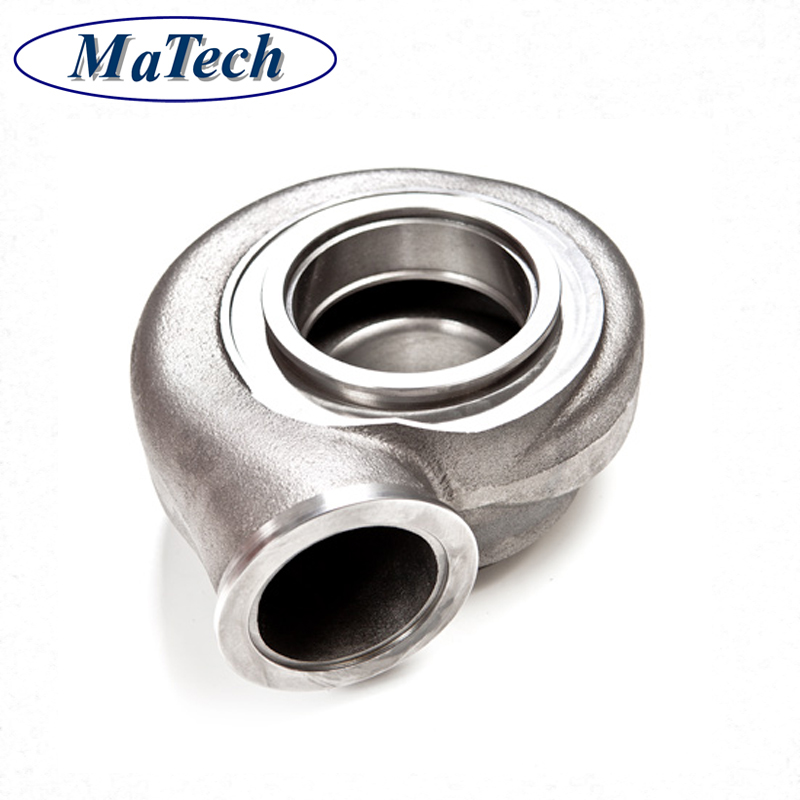

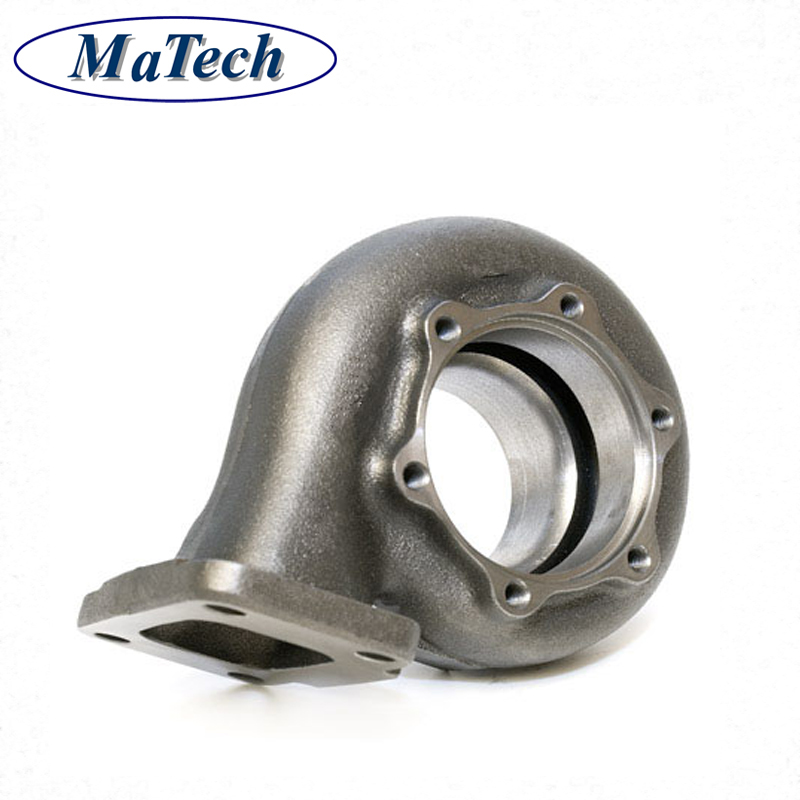

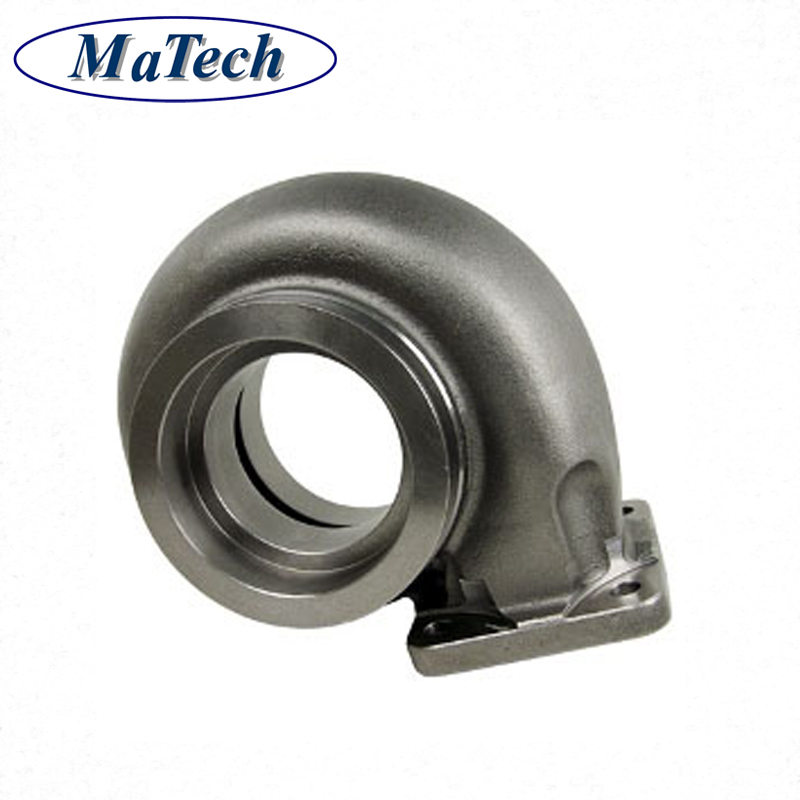

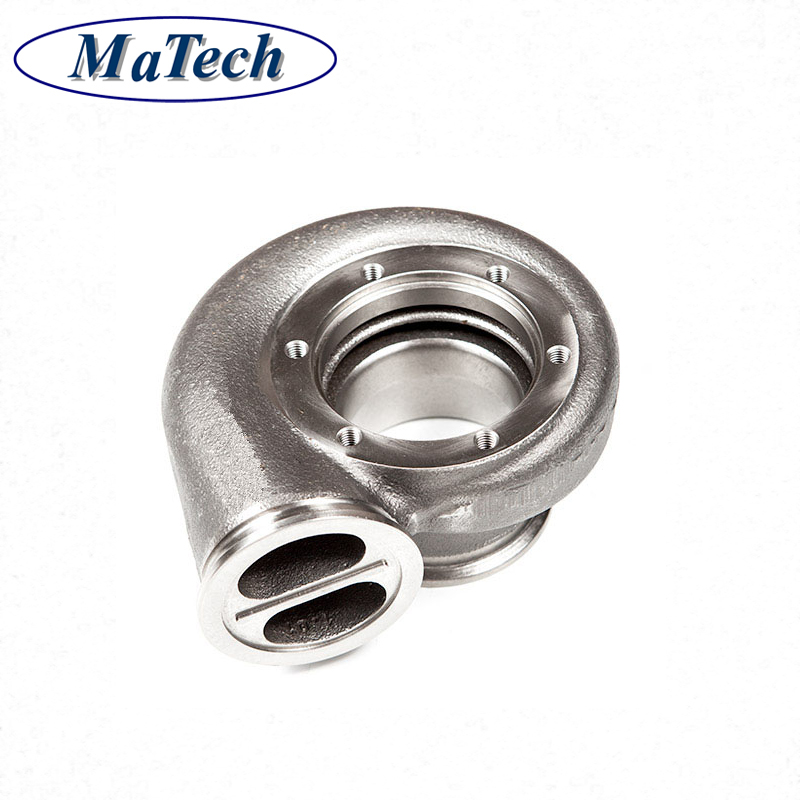

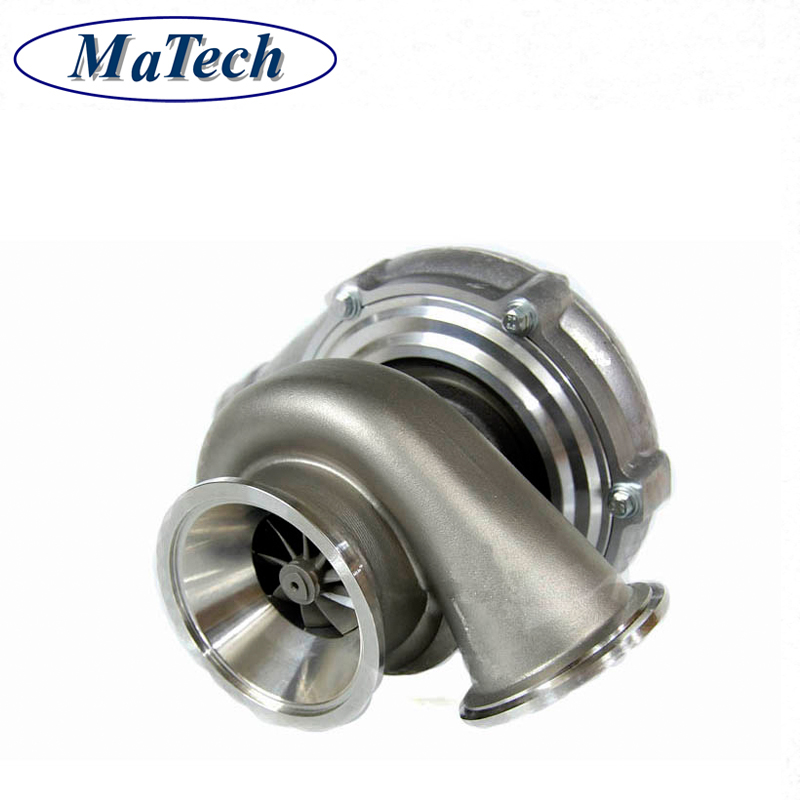

Customized Turbine Housing Stainless Steel Casting Factory
Item Name | Customized Turbine Housing Stainless Steel Casting Factory |
General Products Application | Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc. |
Main Blank Process for Stainless Steel Casting | Investment casting (wax mold made by middle temperature wax) /Precision casting ; |
Blanks Tolerance -Casting Tolerance | CT7-8 for Lost wax Casting Process |
Applicable Material for stainless steel casting | Stainless Steel: CF8, CF8M, . G-X6CrNiMo1810, G-X7CrNiNb1189, SUS 304, 304L, 316, 316L. |
Casting Blank Size | 2 mm-600mm / 0.08inch-24inch according to customer requirement |
Casting Blank Weight | Range from 0.01kg-85kg |
Applicable Machining Process | CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ |
Machining Tolerance | From 0.005mm-0.01mm-0.1mm |
Machined Surface Quality | Ra 0.8-Ra3.2 according to customer requirement |
Applicable Heat Treatment | Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching etc. |
Applicable Finish Surface Treatment | Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting, etc. |
MOQ for batch order | For our stainless steel casting factory: 100pcs, Or as customers require |
| Lead Time | 50 days for our stainless steel casting factory |
1. What do you do?
We are a professional manufacturer with over 15 years’ export experience for designing and producing vehicle machinery parts.
2. How can I get some samples of casting turbine housing?
If you need, our stainless steel casting factory are glad to offer you samples for free, but the new clients are expected to pay the courier cost, and the charge will be deducted from the payment for formal order.
3. Can you make casting stainless steel impeller according to our drawing?
Yes, our stainless steel casting factory can make casting stainless steel impeller according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4. Can you make casting stainless steel impeller based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.
5. What’s your quality control device in house?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting stainless steel impeller.
We produce stainless steel casting parts per your drawing or sample, with cost reduction and feasible tech proposals. Inquiry
